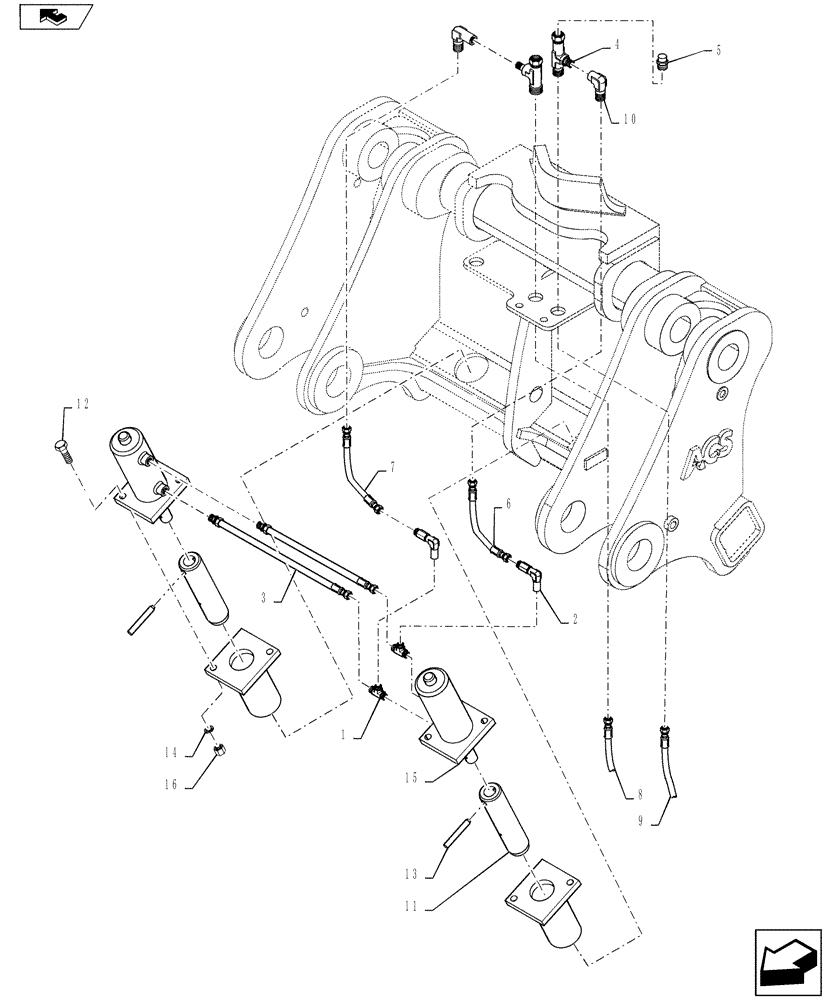

Запчасти Case 721F (82.300.AX[03]) - HYDRAULIC COUPLER, XT, ACS (82) - FRONT LOADER & BUCKET

REF

INSTRUCTION

87441106, COUPLER; XT; ACS Pro Series 2000

1шт.

REF

INSTRUCTION

87470246, PACKAGE; Manual ACS Pro Series 2000 XT

1шт.

REF

INSTRUCTION

CYLINDER/PIN KIT; ACS; XT; Vendor Part Number; 65595535; Incl. 11 - 16

1шт.

1

REF

INSTRUCTION

FITTING, TEE; ACS; XT; Vendor Part Number; 52800540

2шт.

2

REF

INSTRUCTION

FITTING, 90DEG; ACS; XT; Vendor Part Number; 52801119

2шт.

3

REF

INSTRUCTION

HOSE; ACS; XT; Vendor Part Number; 54830114

2шт.

4

REF

INSTRUCTION

FITTING, BULKHEAD TEE; ACS; XT; Vendor Part Number; 52800803

2шт.

5

REF

INSTRUCTION

FITTING, CAP; ACS; XT; Vendor Part Number; 52800727

2шт.

6

REF

INSTRUCTION

HOSE; ACS; XT; Vendor Part Number; 54830358

1шт.

7

REF

INSTRUCTION

HOSE; ACS; XT; Vendor Part Number; 54001576

1шт.

8

REF

INSTRUCTION

HOSE; ACS; XT; Vendor Part Number; 54001575

2шт.

9

REF

INSTRUCTION

RETAINER; ACS; XT; Vendor Part Number; 62640051

4шт.

10

REF

INSTRUCTION

NUT; BULKHEAD; ACS; XT; Vendor Part Number; 52001444

2шт.

11

REF

INSTRUCTION

PIN, LOCKING; ACS; XT; Vendor Part Number; 40600850; 2 x 6-9/16 IN

2шт.

12

REF

INSTRUCTION

HEX BOLT; ACS; XT; Vendor Part Number; 60660520; 1/2-13 X 2 in

4шт.

13

REF

INSTRUCTION

PIN,ROLL; ACS; XT; Vendor Part Number; 40336700; 3/8 X 1-7/8 in

2шт.

14

REF

INSTRUCTION

WASHER; ACS; XT; Vendor Part Number; 60680180; 1/2 Lock

4шт.

15

REF

INSTRUCTION

CYLINDER; ACS; XT; Vendor Part Number; 50600775

2шт.

16

REF

INSTRUCTION

NUT; ACS; XT; Vendor Part Number; 60481390; 1/2-13 NC

4шт.
