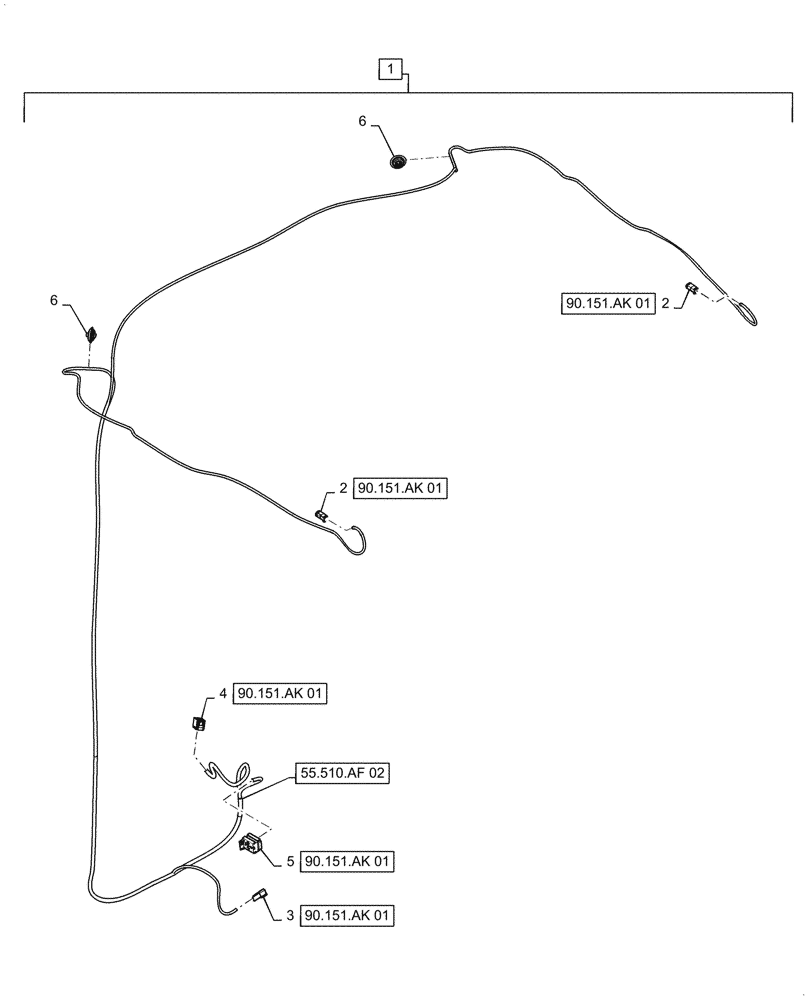

Запчасти Case 721F (55.511.AM) - HEATED REARVIEW MIRROR WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84494902

WIRE HARNESS

Incl 2 - 6

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

Heated Mirror

2шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

3

225294C1

ELEC CONNECTOR,Male, 3 Pin

Heated Mirror

1шт.

3

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

3шт.

3

87695625

WIRE CONNECTOR,Locking, Green

1шт.

4

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

Enable Switch

1шт.

4

87697752

TERMINAL

10шт.

5

245731C1

CONNECTOR, ELEC

5-Slot Timer Realy

1шт.

6

87613497

GUARD

Grommet

2шт.
