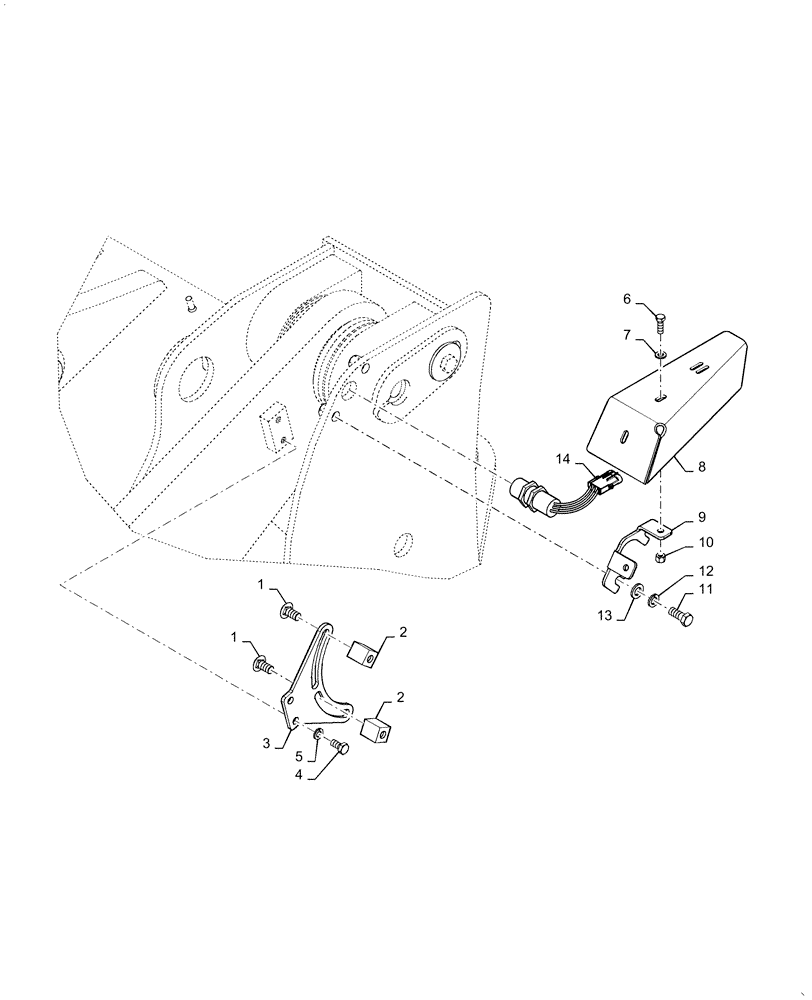

Запчасти Case 721F (55.415.AB) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, Z-BAR (55) - ELECTRICAL SYSTEMS

1

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

2

87437102

BLOCK

Proximity Switch

2шт.

3

379149A2

MOUNTING PLATE

Target

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

8

47411064

COVER

Proximity Switch

1шт.

9

47411062

MOUNTING PLATE

Switch and Cover

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

14

1546498C1

SWITCH

Proximity

1шт.
