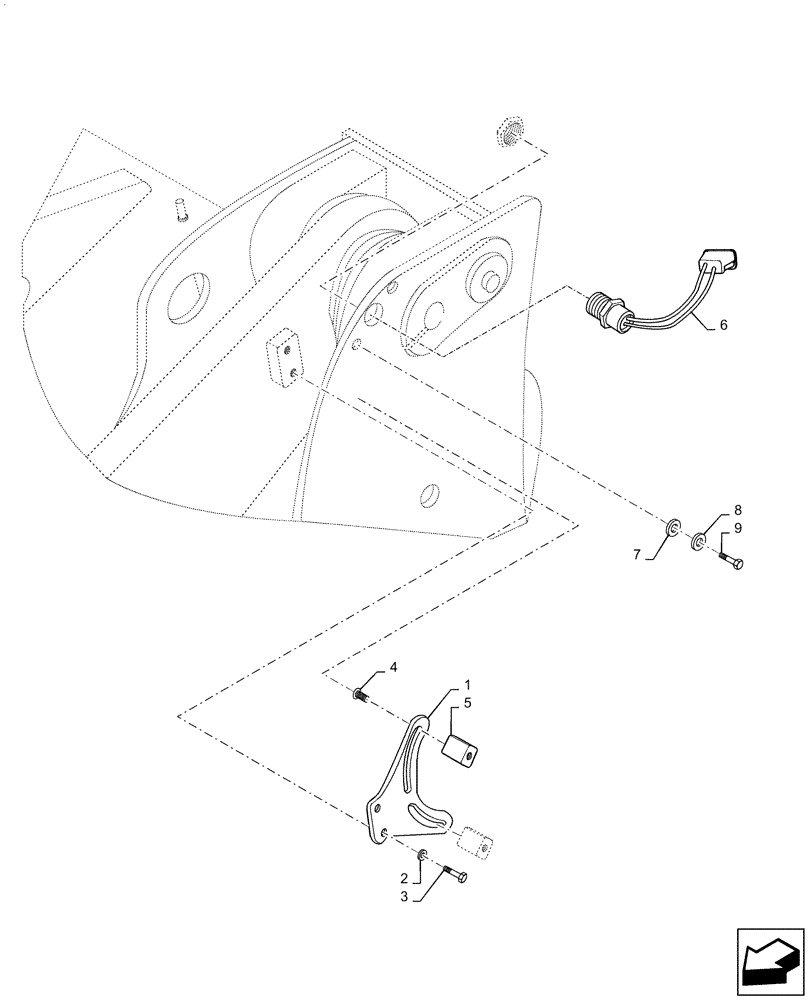

Запчасти Case 721F (55.415.AB[02]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XR/LR (55) - ELECTRICAL SYSTEMS

1

76082607

PLATE

Target Mount

1шт.

2

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

3

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

4

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

2шт.

5

87437102

BLOCK

Proximity Switch

2шт.

6

1546498C1

SWITCH

Proximity, Bucket

1шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

8

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

9

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.
