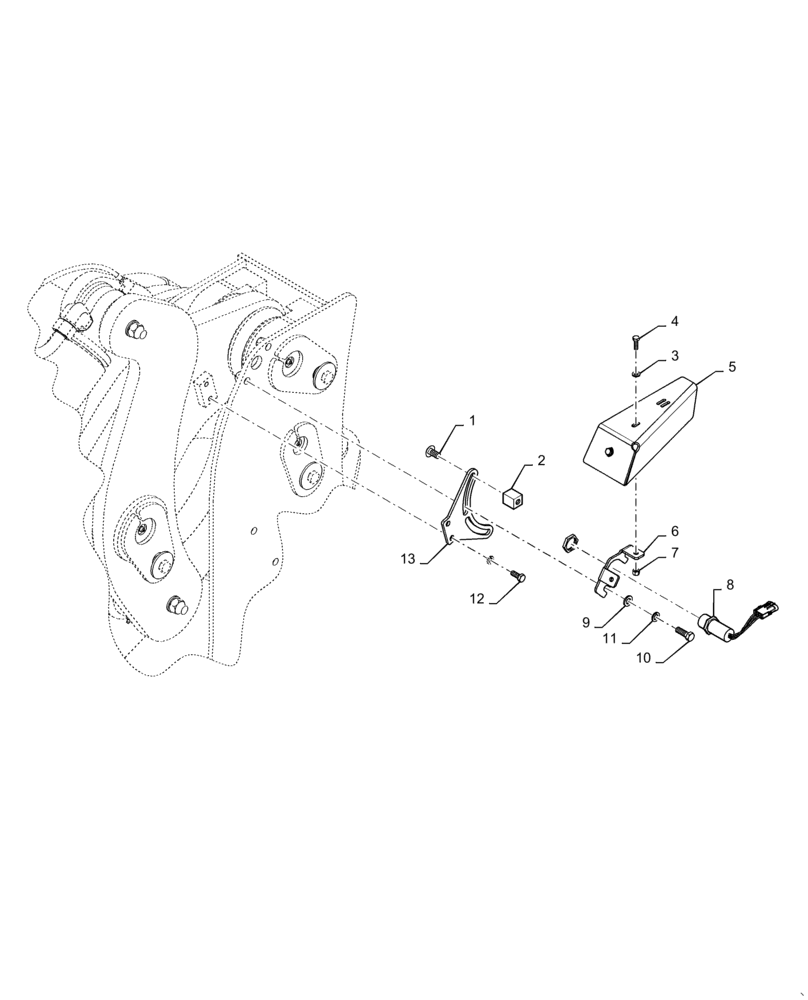

Запчасти Case 721F (55.415.AB[01]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XT/TC (55) - ELECTRICAL SYSTEMS

1

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

2

87437102

BLOCK

Proximity Switch

1шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

47411064

COVER

Proximity Switch

1шт.

6

47411062

MOUNTING PLATE

Switch and Cover

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

1546498C1

SWITCH

Proximity, Normally Closed

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

13

379149A2

MOUNTING PLATE

Target Mount

1шт.
