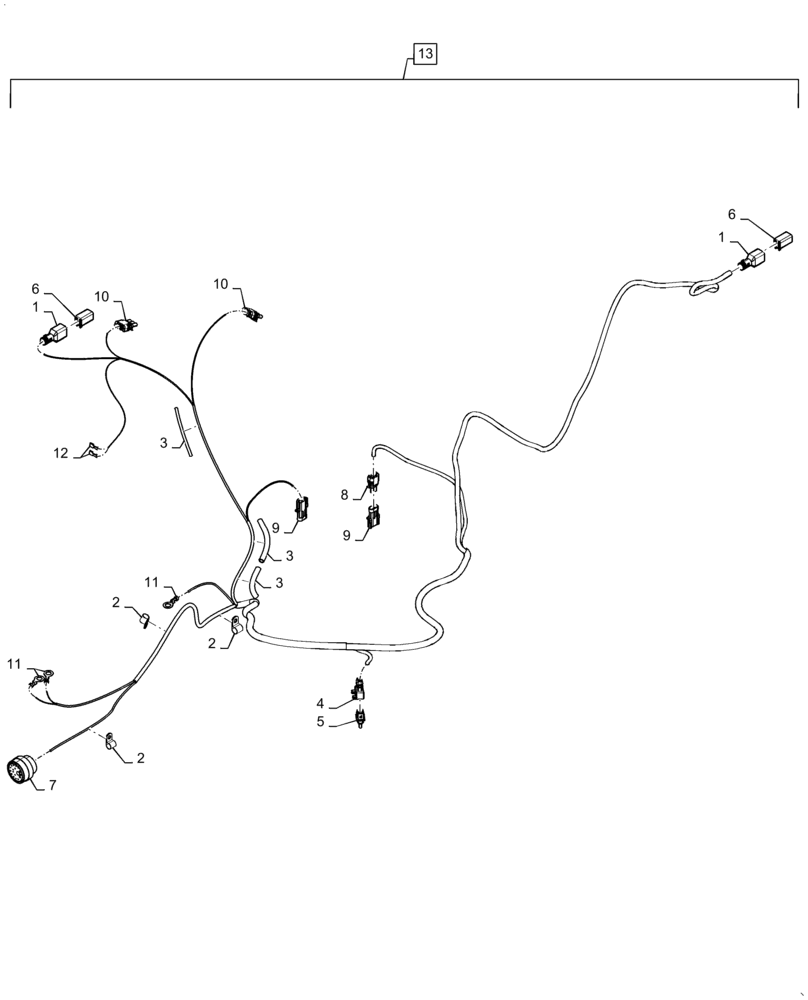

Запчасти Case 721F (55.100.AC[04]) - FRONT CHASSIS HARNESS ASSEMBY, XT (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case 721F - (55.100.AC[04]) - FRONT CHASSIS HARNESS ASSEMBY, XT (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5327066.png)
2
9
2
12
3
10
8
1
7
9
2
6
3
13
1
4
11
6
3
10
11
5
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
Backshell, Incl W/ 13
2шт.
2
515-24190
CLAMP,3/4", Insul, 7/16" Bolt
3шт.
3
NSS
NOT SOLD SEPARAT
Splice Butt, Incl W/ 13
3шт.
4
291718A1
ELEC CONNECTOR,Female, 2 Pin
1шт.
5
291717A1
ELEC CONNECTOR,Male, 2 Pin
1шт.
6
225351C1
ELEC CONNECTOR,Female, 6 Pin
2шт.
7
319149A1
CONNECTOR, ELEC
1шт.
8
245482C1
ELEC CONNECTOR,2 Pin
1шт.
9
245483C1
ELEC CONNECTOR,Male, 2 Pin
2шт.
10
245484C1
ELEC CONNECTOR,3 Pin
2шт.
11
1964718C1
TERMINAL CONNECTOR
3шт.
12
282459A1
ELEC CONNECTOR,Female, 0.75 - 2 mm2
2шт.
13
47434414
WIRE HARNESS
Front Chassis, XT Models Only, Incl 1 - 12
1шт.
Выбрано товаров: 13
