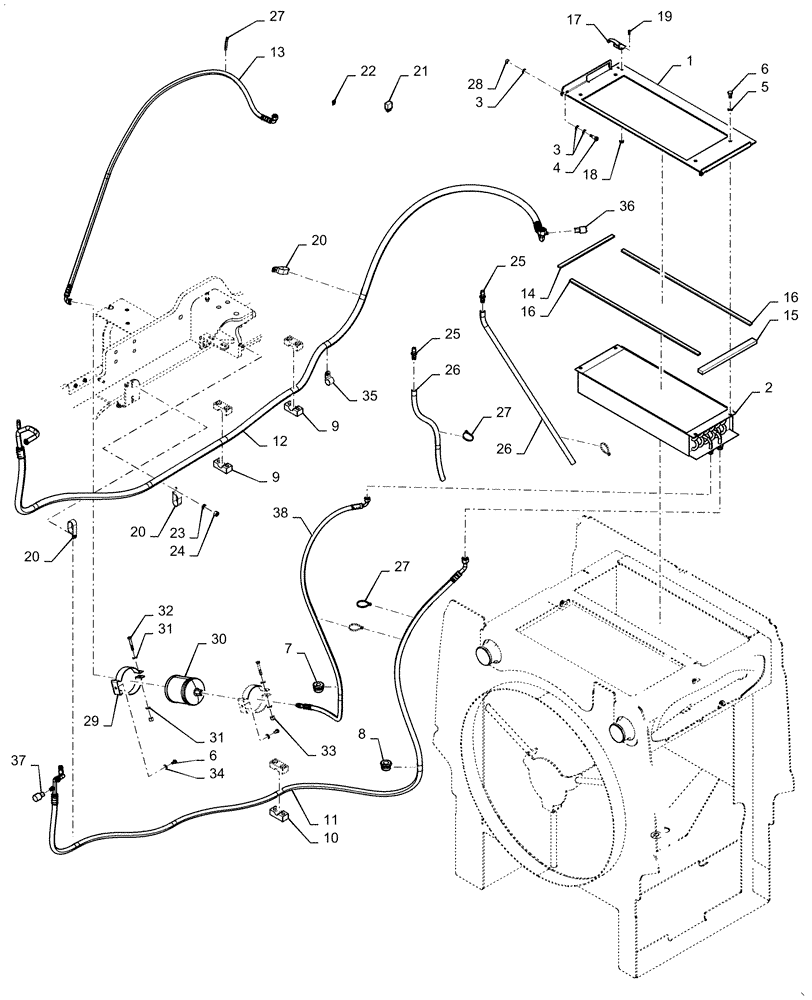

Запчасти Case 721F (50.200.BB) - A/C CONDENSER LINE INSTALLATION (50) - CAB CLIMATE CONTROL

1

84411602

PLATE

Condenser

1шт.

2

8500878

CONDENSER

Air Conditioning

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

4

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

7

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

367489A1

BLOCK

Tube Mounting

2шт.

10

379374A1

BLOCK

Tube Mounting

1шт.

11

47624326

HOSE

Compressor to Condenser, 3781.6mm Lg

1шт.

12

47597623

HOSE

Cab to Compressor, 3650mm Lg

1шт.

13

84191332

A/C HOSE

Dryer to Cab, 1640mm Lg

1шт.

14

87432328

SEAL

Condenser Latch

1шт.

15

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

A/C Cooler Foam

1шт.

16

8500133

OIL SEAL

Oil Cooler, Side

2шт.

17

60-4640T1

LATCH

Condenser Plate

1шт.

18

225-14108

NUT,#8-32

2шт.

19

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

20

31-1081

CLAMP

Double

3шт.

21

87312626

RELAY,24V

5 Pin

1шт.

22

121411A1

FUSE,7.5A, Mini, Brown

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

87587636

FITTING

1/2" Double Barbed

2шт.

26

87587637

PLASTIC-RUBBER TUBE

Drain, 13mm ID x 16mm OD x 800mm Lg

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

433723A1

CLAMP

Bracket, Receiver/Dryer

2шт.

30

295006A1

RECEIVER-DRYER

Reservoir

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

32

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

33

832-10406

NUT,M6 x 1, Cl 8

2шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

35

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

36

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

37

232948A1

SWITCH, A/C HIGH PRE

High

1шт.

38

84191331

A/C HOSE

Condenser to Dryer, 2045mm Lg

1шт.
