Запчасти Case 721F (50.104.AH) - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL

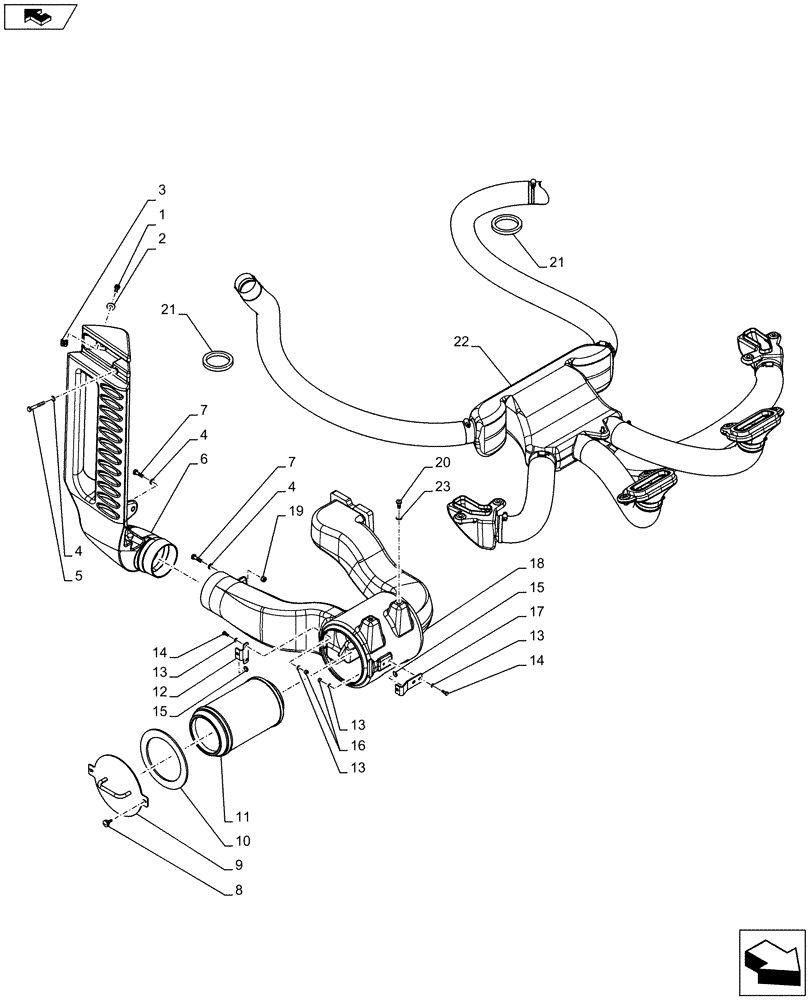

Схема запчастей Case 721F - (50.104.AH) - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL
10
4
1
22
15
17
3
21
7
13
2
15
8
13
19
6
9
21
23
14
20
11
13
4
18
7
5
4
14
16
12
13

Артикул

Название

Примечание

Количество

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

2

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

M9 x 24 x 2

1шт.

3

76303594

SQUARE NUT

1шт.

4

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

6

76303027

AIR DUCT

Snorkel Air Intake

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

422721300

BOLT

2шт.

9

47510681

COVER

Air Filter Housing

1шт.

10

76303546

SEAL,145mm ID x 195mm OD x 5mm Thk

Filter Cover

1шт.

11

87712194

CAB FILTER,Standard

1шт.

11

84234542

CAB FILTER,Carbon

1шт.

12

76303541

BRACKET

Right Side Air Filter

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

15

87610851

LOCK NUT,M6 x 17mm OD

Selflocking

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

4шт.

17

76303617

BRACKET

Left Side Air Filter

1шт.

18

76303614

AIR DUCT

Filter Housing to Cab

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

20

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

2шт.

21

76303500

GASKET,Square, 10mm Thk x 70mm ID

HVAC Tubes

2шт.

22

76303023

DUCT

Manifold

1шт.

23

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
