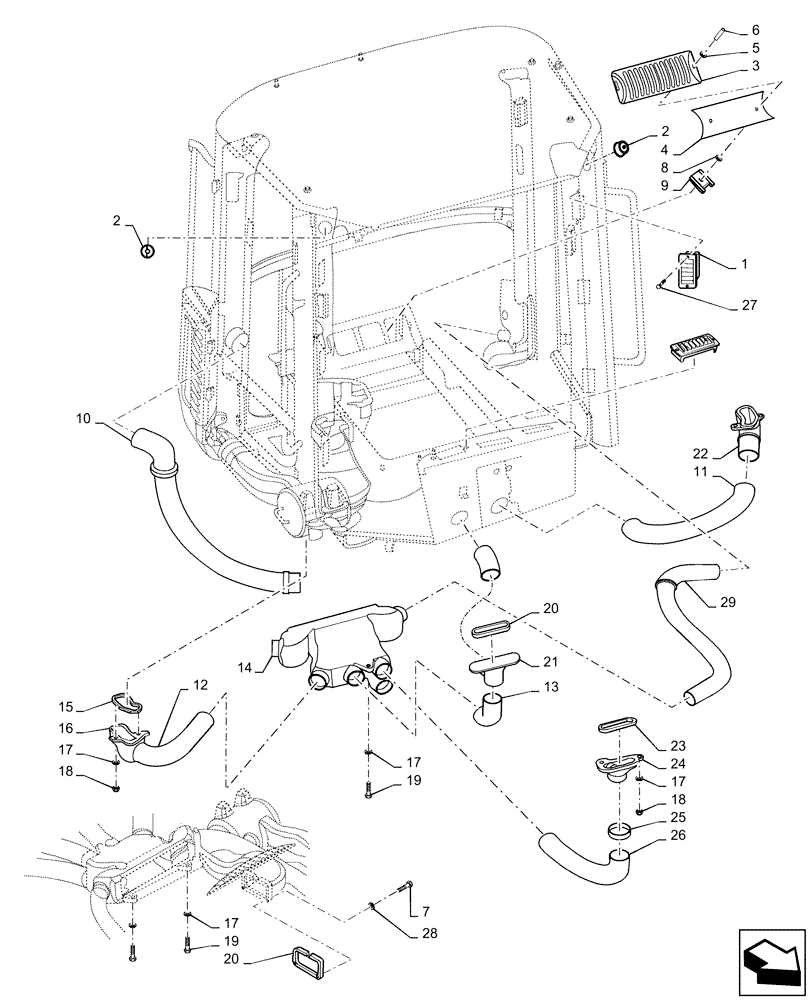

Запчасти Case 721F (50.104.AH[01]) - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL

1

84159954

OUTLET

Cab Louver

15шт.

2

76048980

VENT

Air Louver

2шт.

3

84125367

COVER

Air Recirculate

1шт.

4

84389987

AIR FILTER,Square, 415mm L x 164mm W, Paper

Cab Recirculation

1шт.

5

87610804

RUBBER WASHER

D6.4 x 17

1шт.

7

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

6

76303321

PIN

Latch, 1/4 Turn

1шт.

8

76303319

WASHER

6.3mm ID x 12.5mm OD x .5mm Thk, 1/4 Turn

1шт.

9

76303320

CLIP

Receiver, 1/4 Turn

1шт.

10

76303505

HOSE,70mm ID x 1700mm L

Tube, Air, 70mm ID x 1700mm Lg

1шт.

11

76303501

HOSE,80mm ID x 865mm L

Tube, Air, 80mm ID x 865mm Lg

1шт.

12

76303502

VENTILATION PIPE

Tube, Air, 80mm ID x 650mm Lg

1шт.

13

76303549

VENTILATION PIPE

Tube, Air, 80mm ID x 700mm Lg

2шт.

14

76303023

DUCT

Manifold

1шт.

15

76303495

GASKET,10mm Thk

Right Hand Side

2шт.

16

87619957

AIR DUCT

Right Hand Side

1шт.

17

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M9 x 16 x 1.6

14шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

19

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

20

76303547

GASKET,15mm Thk

Air Filter Housing

1шт.

21

87619956

AIR DUCT

Inlet Right Hand Center

1шт.

22

87619954

AIR DUCT

Inlet Left Hand Side

1шт.

23

76303494

GASKET,13mm Thk

Inlet Left Hand Center

2шт.

24

87619955

AIR DUCT

Inlet Left Hand Center

1шт.

25

87610848

GASKET

10mm W x 1.5mm Thk x 250mm Lg

4шт.

26

214-1444

HOSE CLAMP,58.6mm - 82.5mm

4-12шт.

27

265-17316

SELF-TAP SCREW,Phillips Drive, Oval HD, #6 - 20 x 1"

30шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

29

76303504

VENTILATION PIPE

Tube, Air, ID 70mm x 1500mm

1шт.
