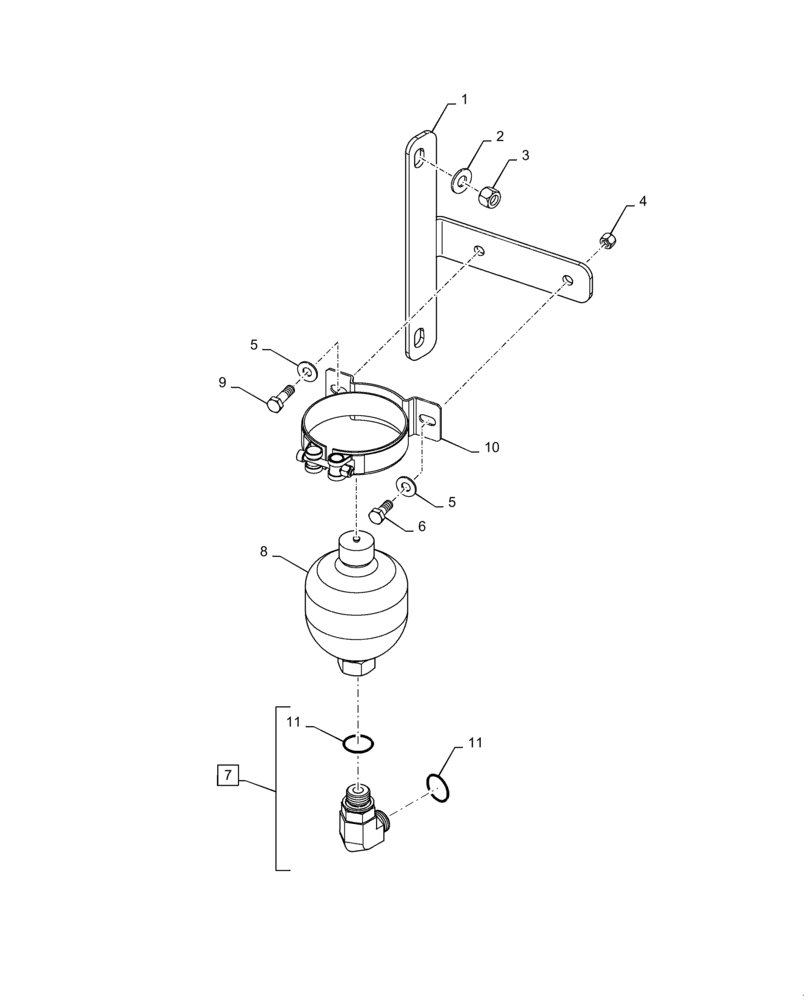

Запчасти Case 721F (41.910.AD) - AUXILIARY STEERING ACCUMULATOR (41) - STEERING

1

87741113

BRACKET

Accumulator

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

87725875

FITTING

Incl 11

1шт.

8

87746283

ACCUMULATOR

Aux Steering

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

10

87750434

CLAMP

Accumulator Mounting

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
