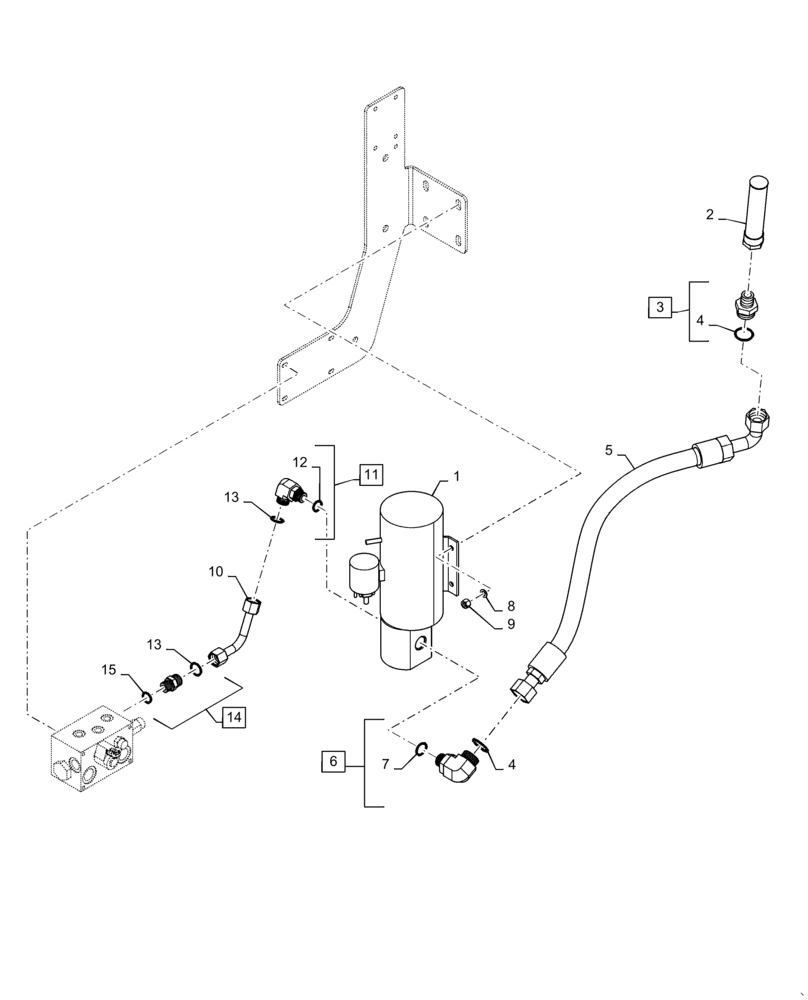

Запчасти Case 721F (41.910.AA) - AUXILIARY STEERING PUMP INSTALLATION (41) - STEERING

1

84419597

MOTOR-PUMP

Auxiliary Steering

1шт.

2

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

3

87433494

HYD CONNECTOR

Incl 4

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

87592639

HOSE ASSY.

Auxiliary Suction

1шт.

6

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4, 7

1шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

10

87591383

TUBE,13.11 mm ID x 15.88 mm OD x 98.8, 80.9 mm L

Auxiliary Pressure

1шт.

11

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 12 - 13

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 13, 15

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
