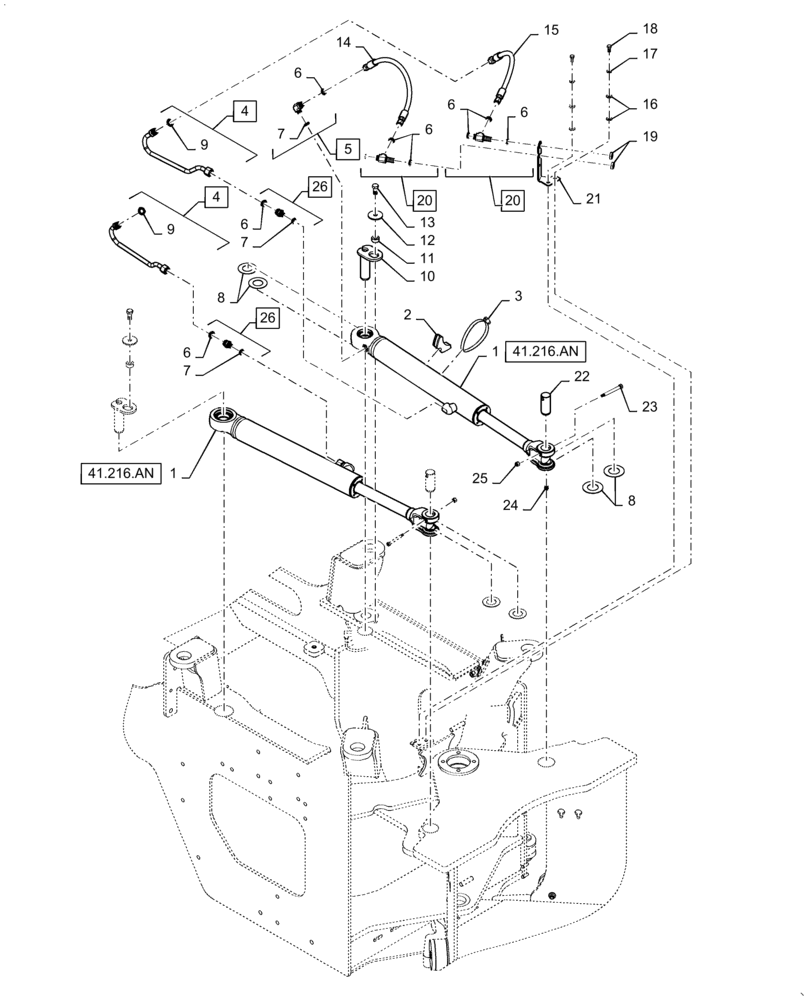

Запчасти Case 721F (41.216.AV) - STEERING CYLINDER INSTALLATION (41) - STEERING

1

87452362

STEERING CYLINDER

CE Gray

2шт.

1

87452362R

REMAN-HYD CYLINDER

2шт.

1

87452362C

CORE-HYD CYLINDER

Return Number

2шт.

2

8500483

BLOCK

Clamp

2шт.

3

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

4

8602591

HYD TUBE

Steering Cylinder Plated

2шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

8

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

41mm ID x 76mm OD x 1.59mm Thk

8шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

87351646

PIN,39.96mm OD x 141mm L

Rear Chassis

2шт.

11

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

12

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

14

8500460

FLEXIBLE HOSE

LH Side Base, 872mm Lg

1шт.

15

8602589

FLEXIBLE HOSE

LH Side Rod, 715mm Lg

1шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

19

701-903

NUT,13/16" - 16

2шт.

20

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 6

2шт.

21

8602342

BRACKET

CE Gray

1шт.

22

87559561

PIN,40mm OD x 95.1mm L

Steering Front Chassis

2шт.

23

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

26

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 6, 7

2шт.
