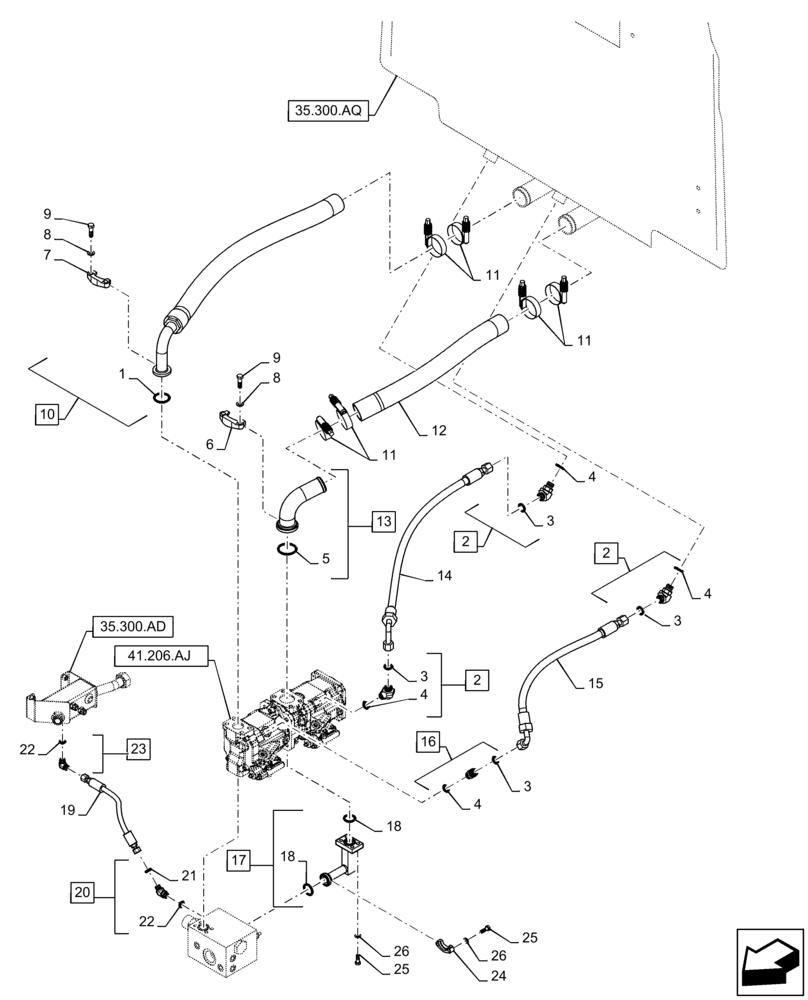

Запчасти Case 721F (41.206.AJ[01]) - PRIORITY PUMP INSTALLATION (41) - STEERING

1

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

2

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 3, 4

3шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

Split Half Clamp 2.00

2шт.

7

A14157

FLANGE

Split Half Clamp 1.50

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

10

8501009

FLEXIBLE HOSE

Small; Pump Suction, Incl 1

1шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

6шт.

12

8602648

HYDRAULIC HOSE,50.80 mm ID x 645.00 mm, SAE 100R4 Class 4 Type 2

Large Pump Suction

1шт.

13

8602646

TUBE,50.80 mm OD x 130, 100 mm L

Pump Suction; Plated, Incl 5

1шт.

14

87318402

HOSE ASSY.

Small; Case Drain

1шт.

15

84303150

HOSE ASSY.

Large; Case Drain

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 3, 4

1шт.

17

84160662

TUBE

Pump Discharge ZP, Incl 18

1шт.

18

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

19

47735651

HOSE

Priority Tank

1шт.

20

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21, 22

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

23

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 22

1шт.

24

A12306

FLANGE

Split Half Clamp 1.00

2шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
