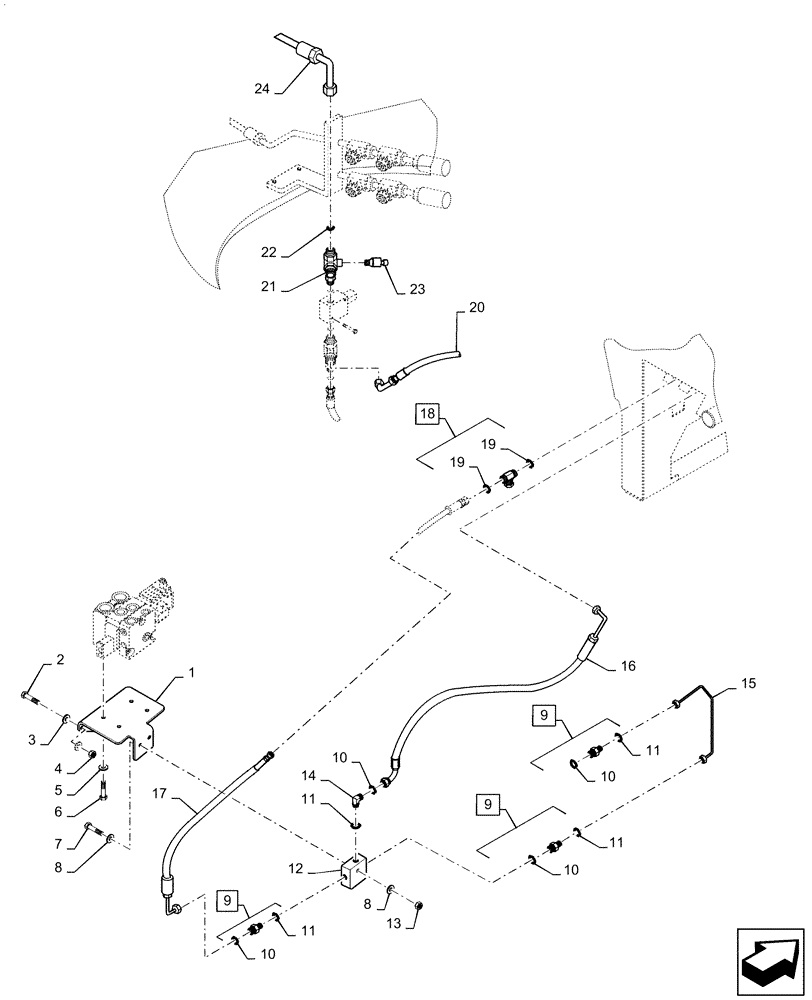

Запчасти Case 721F (41.200.BY[01]) - STANDARD STEERING WITH JOYSTICK, PVFC VALVE INSTALLATION (41) - STEERING

1

87739320

BRACKET

Valve Steering

1шт.

2

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

87661868

HYD CONNECTOR

Incl 10 - 11

3шт.

10

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

12

87719987

VALVE

PVFC

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

84179168

HYD CONNECTOR

Elbow, 45 Adj 8mm ORFS-ORB M14, Incl 10 - 11

1шт.

15

87477378

TUBE,0.25" OD

Steering LS

1шт.

16

87470640

HOSE ASSY.

Steering LS

1шт.

17

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering LS

1шт.

18

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Tee, ORFS SWVL RUN 10mm, Incl 19

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

84217270

HOSE ASSY.

To Tank

1шт.

21

84217266

UNION TEE

Adj Run ORFS 20mm-M27-20mm, Incl 22

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

87363483

SENDER UNIT

Pressure transmitter

1шт.

24

84217269

HOSE ASSY.

Return Orbitrol

1шт.
