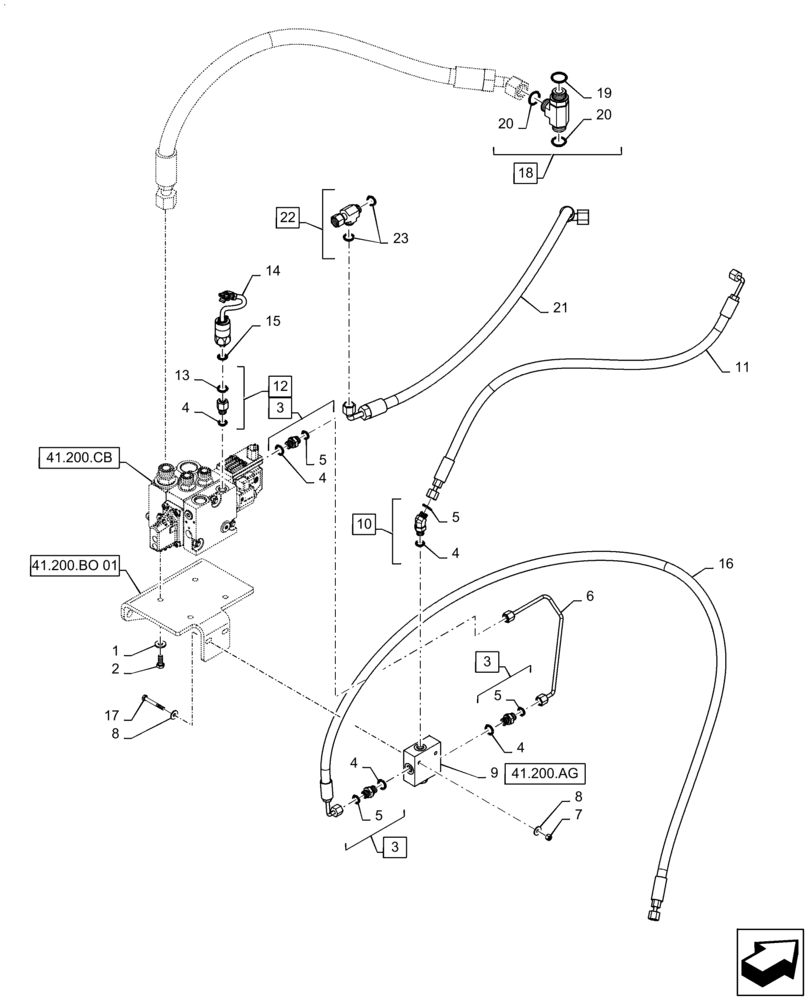

Запчасти Case 721F (41.200.BO[02]) - AUXILIARY STEERING W/ JOYSTICK (41) - STEERING

1

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

87661868

HYD CONNECTOR

9/16"-18 ORFS x M14 x 1.5 ORB, Incl 4, 5

3шт.

4

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

6

87477378

TUBE,0.25" OD

Steering LS

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

87719987

VALVE

PVFC

1шт.

10

84179168

HYD CONNECTOR

45° Elbow, 9/16"-18 ORFS x M14 x 1.5 ORB, Incl 4, 5

1шт.

11

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering LS, 900mm Lg

1шт.

12

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

M14 x 1.5 ORB x M12 x 1.5 ORB, Incl 4, 13

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

84175670

PRESSURE SWITCH

Pilot

1шт.

15

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

For Pressure Switch

1шт.

16

87470640

HOSE ASSY.

Steering LS, 1891mm Lg

1шт.

17

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

18

84231664

FITTING

Tee , 1"-14 ORFS x M27 x 2 ORB, Incl 19, 20

1шт.

19

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

84217270

HOSE ASSY.

To Tank, 966mm Lg

1шт.

22

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 23

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
