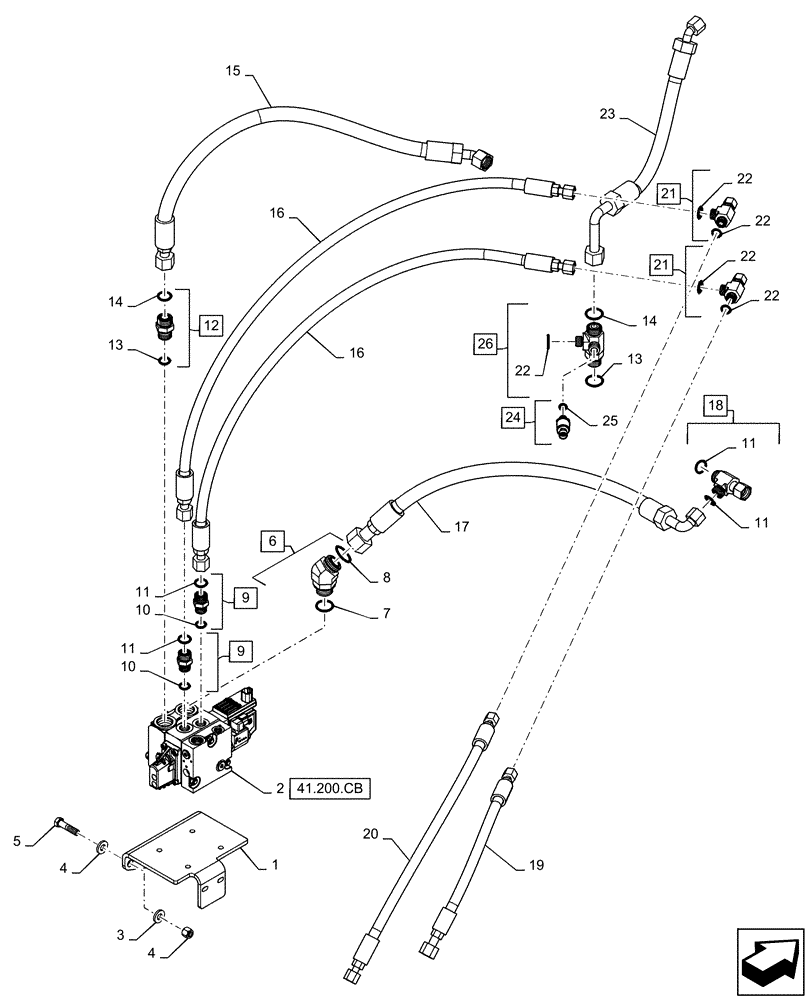

Запчасти Case 721F (41.200.BO[01]) - AUXILIARY STEERING W/ JOYSTICK (41) - STEERING

1

87739320

BRACKET

Valve Steering

1шт.

2

84238869

STEERING VALVE

PVG32 100 l/m

1шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

4

412126

NUT,M12 x 1.75

3шт.

5

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

6

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 7, 8

1шт.

7

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

9

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 10, 11

2шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

12

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 13, 14

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

84165276

HOSE ASSY.

Suction Valve, 900mm Lg

1шт.

16

87739323

HOSE ASSY.

To Cylinder, 1250mm Lg

2шт.

17

84165268

HOSE ASSY.

To Tank, 900mm Lg

1шт.

18

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 11

1шт.

19

87492558

HOSE ASSY.

Right Side Rod, 500mm Lg

1шт.

20

87492561

HOSE ASSY.

Steering Cylinder, 690mm Lg

1шт.

21

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 22

2шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

23

84217269

HOSE ASSY.

Return Orbitrol, 526mm Lg

1шт.

24

87363483

SENDER UNIT

Pressure Sensor, Incl 25

1шт.

25

1411987

SEALING RING

For Sender Unit

1шт.

26

84217266

UNION TEE

Incl 13, 14, 22

1шт.
