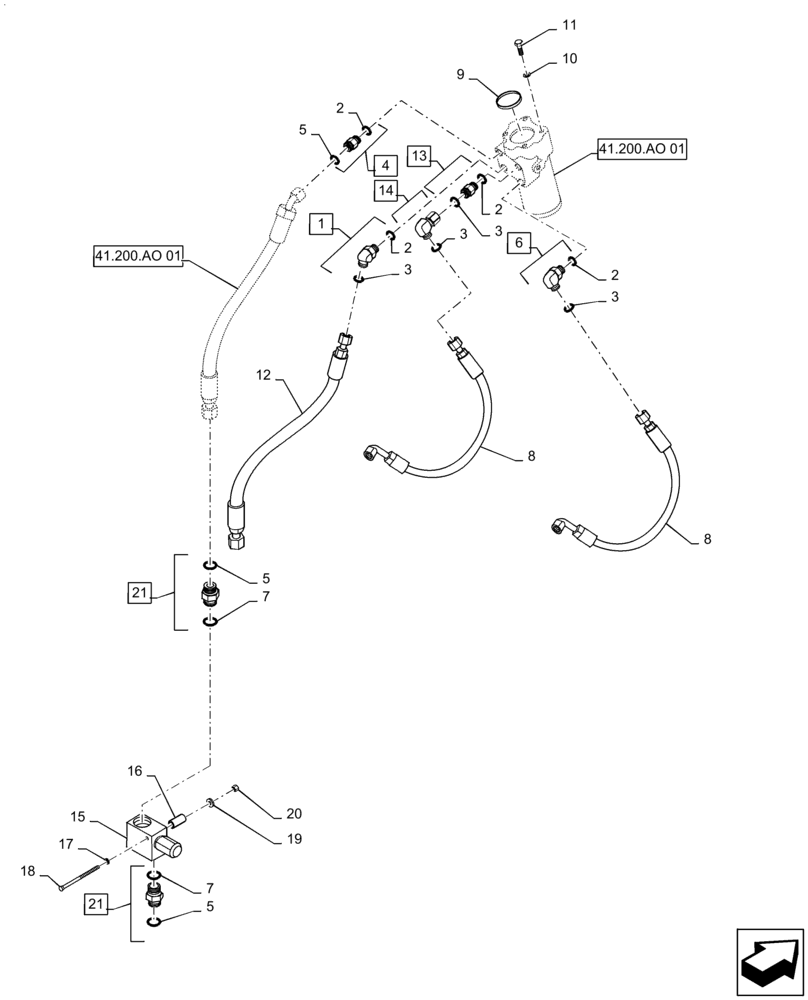

Запчасти Case 721F (41.200.AO[02]) - STEERING, ORBITROL INSTALLATION (41) - STEERING

1

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 2, 3

1шт.

2

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

4шт.

4

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 2, 5

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

6

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 2, 3

1шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

8

87385246

HOSE ASSY.

Steering Cylinder, 569mm (22-1/2 in )

2шт.

9

76043957

GASKET

Steering Orbital

1шт.

10

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

11

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

12

87394744

HOSE ASSY.

Steering Supply, 611mm (24 in )

1шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 2, 3

1шт.

14

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 3

1шт.

15

87427823

VALVE PRESSURE RELIE

1шт.

16

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

86639208

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

19

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 5, 7

2шт.
