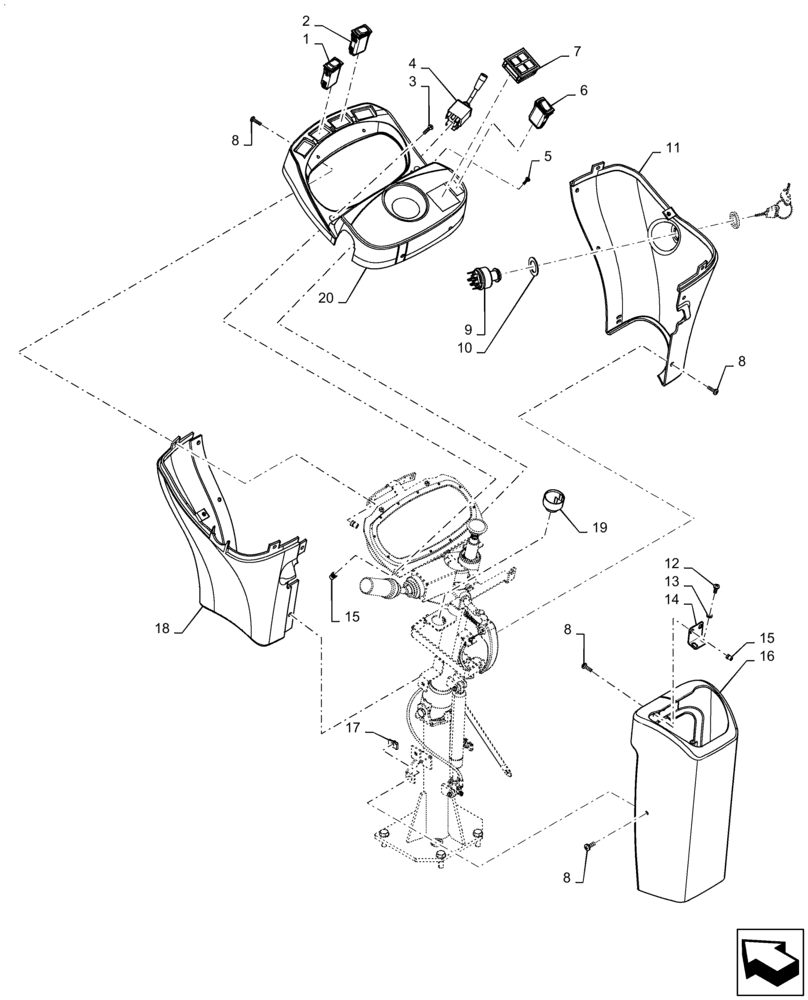

Запчасти Case 721F (41.101.AC) - STEERING HOUSING AND COVERS (41) - STEERING

1

374434A2

SWITCH

Pilot Control

1шт.

2

374426A2

SWITCH

Hazard

1шт.

3

84263392

SCREW,Phillips Drive, Oval HD, M6 x 30mm, Cl 4.8

2шт.

4

389487A1

LIGHT SWITCH

Cab Hand Control

1шт.

5

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

2шт.

6

374424A2

PARK BRAKE SWITCH

Cab Hand Control

1шт.

7

87372804

BOX

Keypad

1шт.

8

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

9шт.

9

282775A1

IGNITION SWITCH

W/ Padded Keys

1шт.

10

76303478

BACK-UP RING

Ignition Switch

1шт.

11

76303020

COVER

Steering

1шт.

12

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

6шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

14

76303516

BRACKET

Pedestal

1шт.

15

404287A1

INSERT,M6

Threaded Knurled, Open

6шт.

16

76303021

COVER

Lower Steering

1шт.

17

833-40306

SPRING NUT,M6, U

7шт.

18

76303019

COVER

Left Side

1шт.

19

87517128

BUZZER

Buzzer Kit

1шт.

20

76303017

DASH PANEL

Dashboard Trim

1шт.
