(39.100.AY[03]) - FRONT CHASSIS INSTALLATION, XT

Запчасти Case 721F (39.100.AY[03]) - FRONT CHASSIS INSTALLATION, XT (39) - FRAMES AND BALLASTING

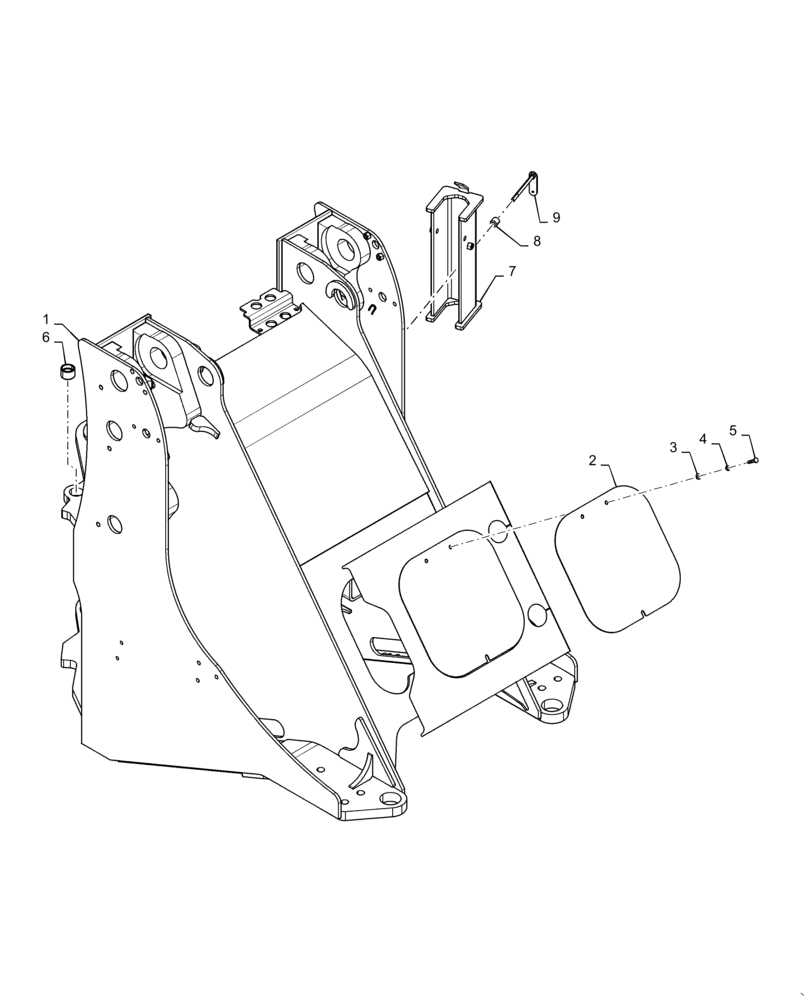

Схема запчастей Case 721F - (39.100.AY[03]) - FRONT CHASSIS INSTALLATION, XT (39) - FRAMES AND BALLASTING
7
1
4
6
9
5
3
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47531901

FRAME

Front

1шт.

2

47404545

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

Steering

2шт.

7

84424925

CHANNEL

With Linkage Support

1шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing Handle

1шт.

9

84304606

HANDLE

Handle/W Linkage Channel

1шт.
