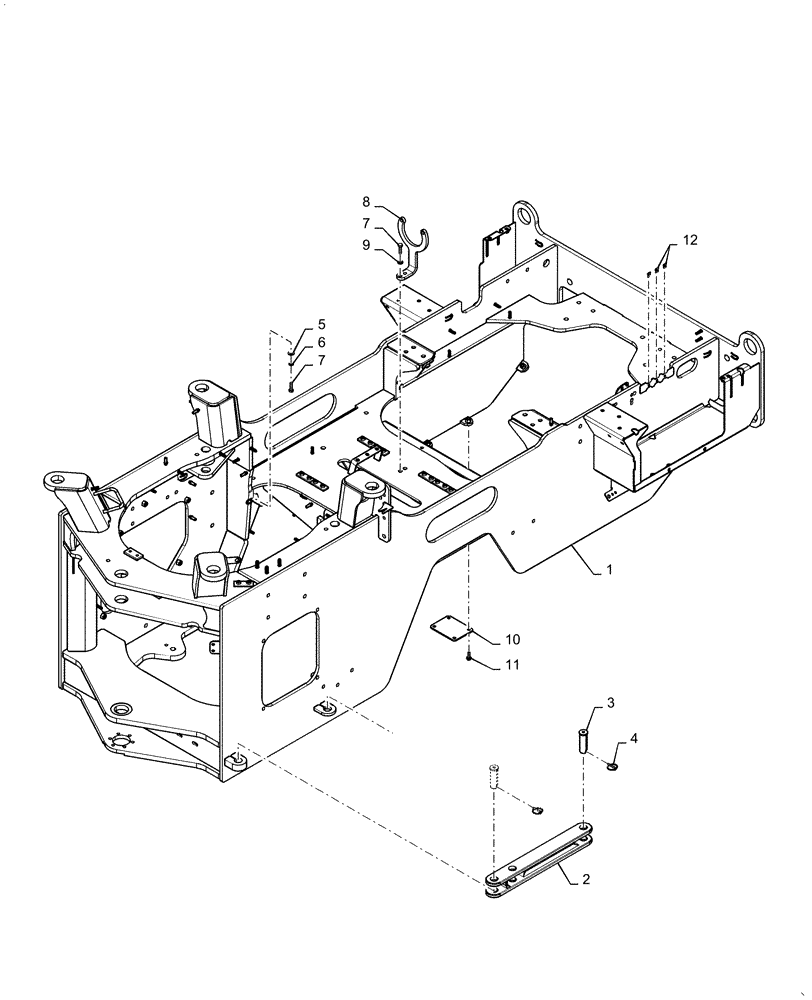

Запчасти Case 721F (39.100.AS) - REAR FRAME INSTALLATION (39) - FRAMES AND BALLASTING

1

47647460

FRAME

Rear

1шт.

2

412067A1

LOCKING BAR

Articulation

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation

2шт.

4

A30338

PIN

Locking Bar

2шт.

5

895-15012

WASHER,M12 x 28 x 2.5

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

8

87333864

GUARD

Drive Shaft

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

47397618

PLATE

Cover Tank Drain

1шт.

11

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

12

833-40306

SPRING NUT,M6, U

3шт.
