(35.752.AG) - THERMAL BYPASS VALVE INSTALLATION

Запчасти Case 721F (35.752.AG) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

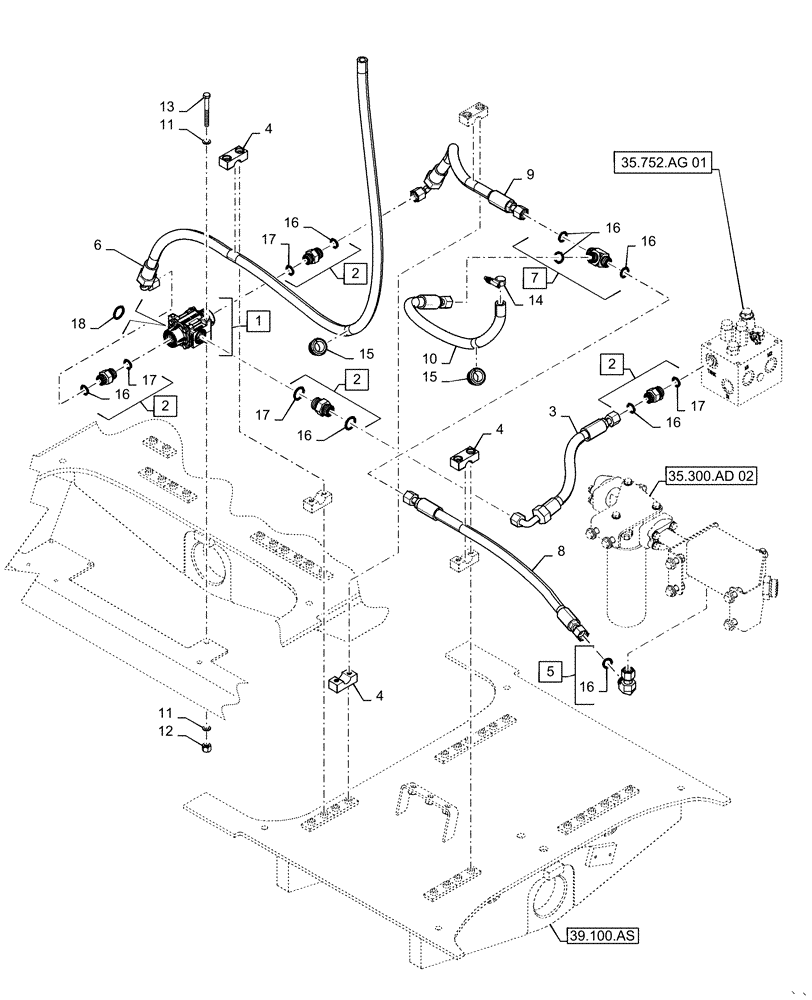

Схема запчастей Case 721F - (35.752.AG) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
39.100.as
8
2
14
16
1
2
17
16
17
6
4
16
10
18
16
4
15
17
11
3
5
11
9
17
13
15
2
16
7
12
2
4
16
16
35.300.ad 02
35.752.ag 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87326981

BY-PASS VALVE

Thermal, Incl 18

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 16 - 17

4шт.

3

87617171

HOSE ASSY.

Fan to Bypass, 457mm Lg

1шт.

4

367489A1

BLOCK

Tube Mounting

3шт.

5

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 16

1шт.

6

87362185

HOSE ASSY.

Bypass to Cooler, 1936mm Lg

1шт.

7

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 16

1шт.

8

87453786

FLEXIBLE HOSE

Junction to Filter, 1025mm Lg

1шт.

9

87453784

FLEXIBLE HOSE

Bypass to Junction, 580mm Lg

1шт.

10

87398129

HOSE ASSY.

Cooler to Junction, 691mm Lg

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

14

328186A1

HOSE CLAMP

2шт.

15

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

18

87328377

REPAIR KIT

Incl in 1, Contains Thermal Element Assy and Seals

1шт.
