(35.724.AE) - JOYSTICK CONTROL INSTALLATION, LOADER CONTROL

Запчасти Case 721F (35.724.AE) - JOYSTICK CONTROL INSTALLATION, LOADER CONTROL (35) - HYDRAULIC SYSTEMS

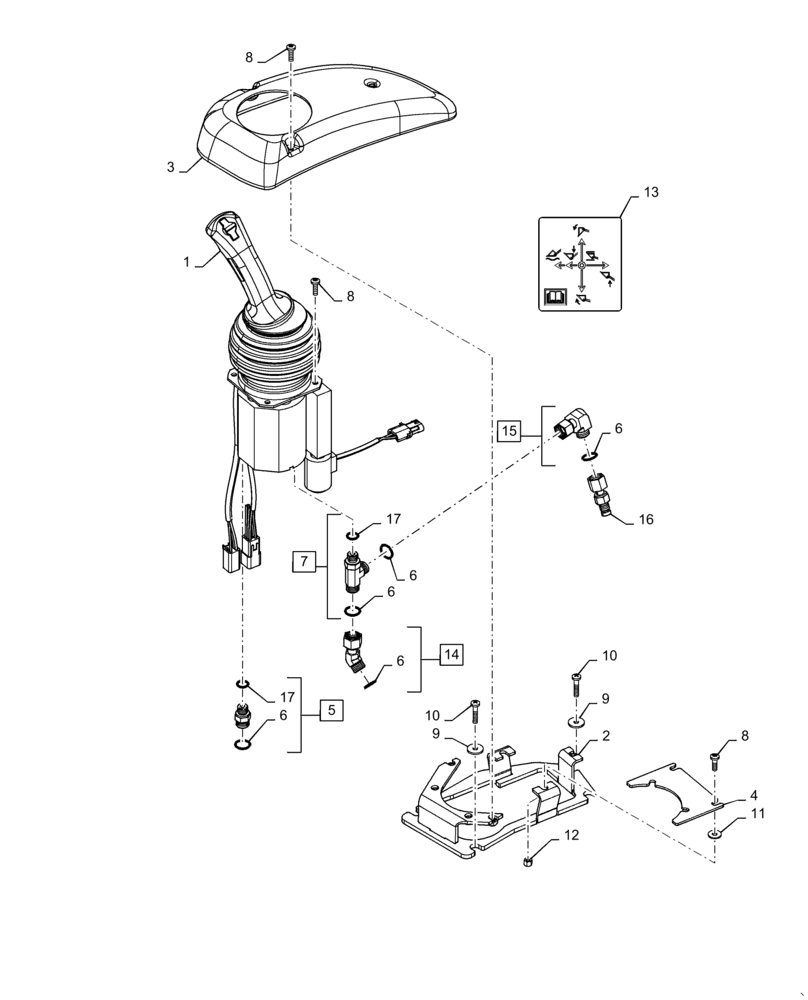

Схема запчастей Case 721F - (35.724.AE) - JOYSTICK CONTROL INSTALLATION, LOADER CONTROL (35) - HYDRAULIC SYSTEMS
7
8
11
8
9
4
6
15
9
17
2
16
1
13
5
17
3
12
8
6
6
14
10
2
6
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340016

JOYSTICK

Controller Assembly

1шт.

2

87516506

ADAPTER

Bracket, Joystick Controller

1шт.

3

87638910

BEZEL

Joystick

1шт.

4

87349019

ADAPTER

No Accessory Levers

1шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 6, 17

5шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

7

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 6, 17

1шт.

8

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

9шт.

9

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

10

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

87536094

DECAL

Joystick Control

1шт.

14

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 6

1шт.

15

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 6

1шт.

16

190119A1

COUPLING

Diagnostic

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

6шт.
