(35.724.AE[01]) - LOADER CONTROL, JOYSTICK W/SINGLE LEVER MOUNTING

Запчасти Case 721F (35.724.AE[01]) - LOADER CONTROL, JOYSTICK W/SINGLE LEVER MOUNTING (35) - HYDRAULIC SYSTEMS

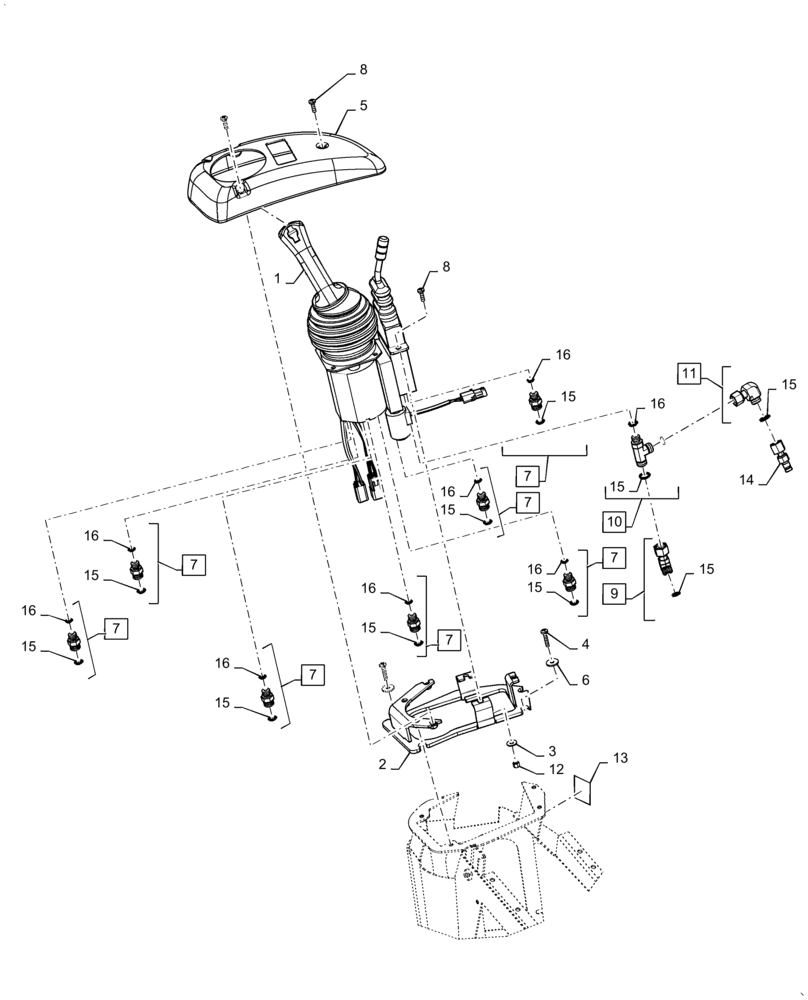

Схема запчастей Case 721F - (35.724.AE[01]) - LOADER CONTROL, JOYSTICK W/SINGLE LEVER MOUNTING (35) - HYDRAULIC SYSTEMS
8
7
11
15
15
6
16
15
7
12
15
16
4
2
1
3
7
16
9
7
16
13
8
10
15
5
7
16
15
16
15
15
7
15
15
16
16
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87340017

JOYSTICK

Control With 1 Lever

1шт.

2

87516506

ADAPTER

Bracket W/ Joystick Controller

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

5

87638911

BEZEL

Joystick

1шт.

6

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

7шт.

8

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

7шт.

9

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 15

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

1шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 15

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

87536095

DECAL

Joystick and 1-Lever

1шт.

14

190119A1

COUPLING

Diagnostic

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

11шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

8шт.
