(35.723.AB) - NON-RIDE CONTROL VALVE INSTALLATION XR / Z-BAR

Запчасти Case 721F (35.723.AB) - NON-RIDE CONTROL VALVE INSTALLATION XR / Z-BAR (35) - HYDRAULIC SYSTEMS

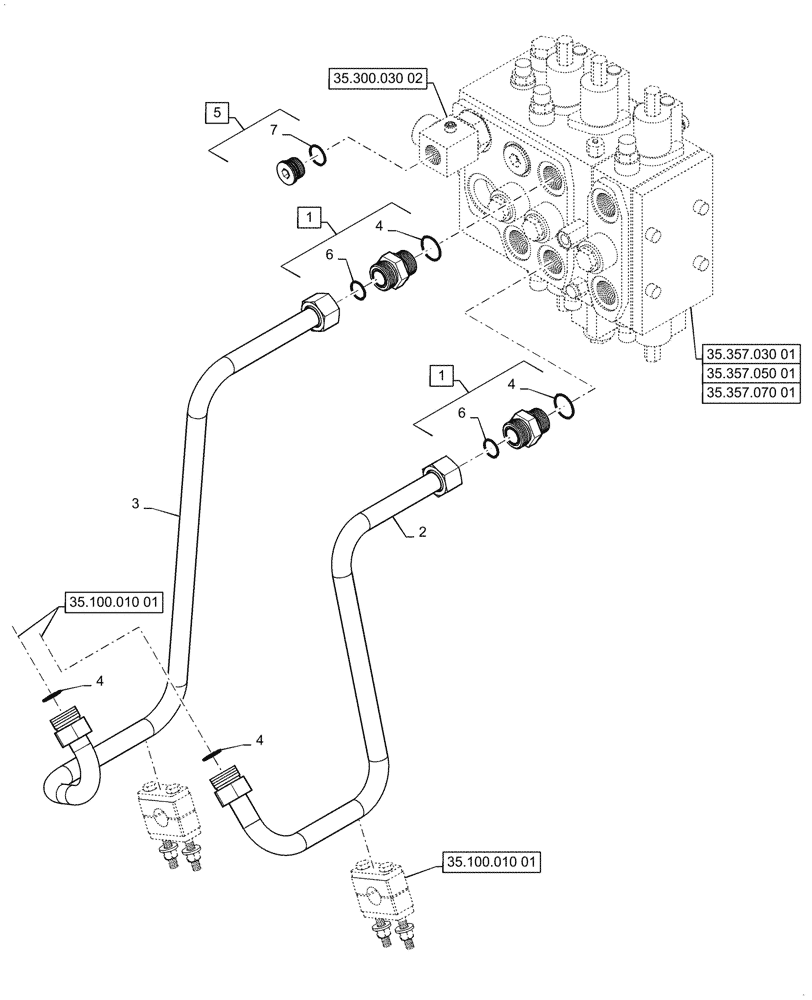

Схема запчастей Case 721F - (35.723.AB) - NON-RIDE CONTROL VALVE INSTALLATION XR / Z-BAR (35) - HYDRAULIC SYSTEMS
35.357.070 01
4
4
3
6
5
7
1
4
1
4
6
2
35.357.050 01
35.300.030 02
35.357.030 01
35.100.010 01
35.100.010 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 4, 6

2шт.

2

8500537

HYD TUBE

Lift Base Right Plated; Z-BAR

1шт.

3

8500525

HYD TUBE

Lower Right Plated; Z-BAR

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

5

86598048

PLUG,Hex Soc, M27 x 2, ORB

Incl 7

1шт.

6

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
