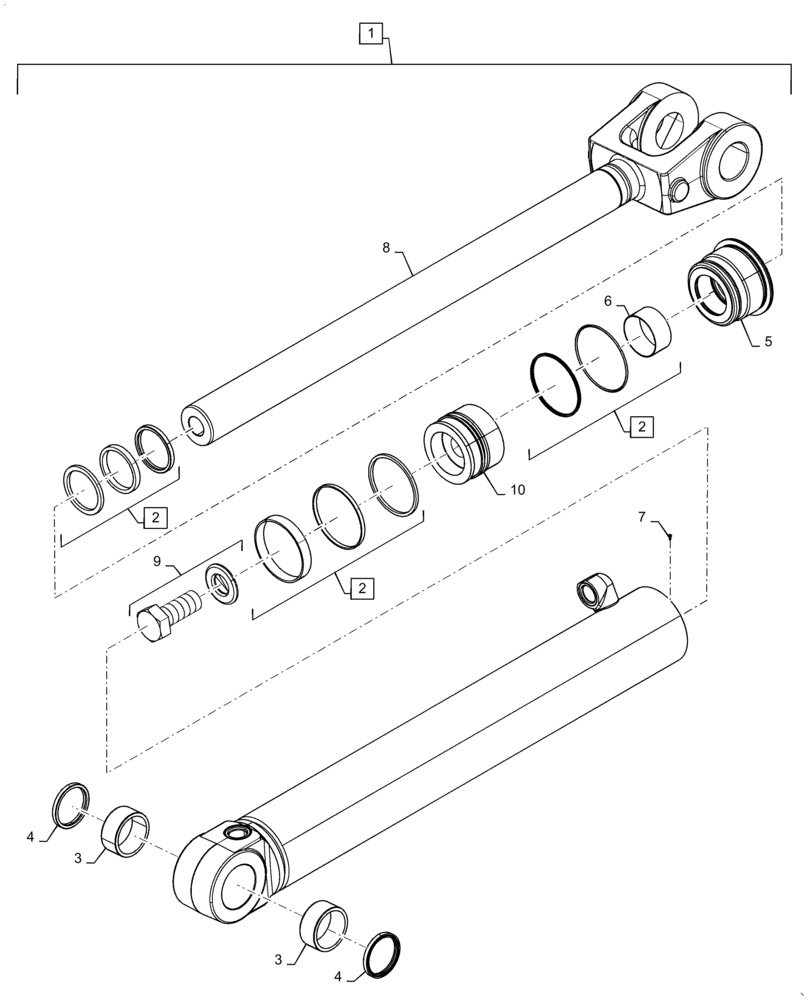

Запчасти Case 721F (35.701.CB[04]) - CYLINDER ASSY - LOADER LIFT Z BAR, XR & XT (35) - HYDRAULIC SYSTEMS

1

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

Incl 2 - 10

1шт.

1

87319194R

REMAN-HYD CYLINDER

Incl 2 - 10

1шт.

1

87319194C

CORE-HYD CYLINDER

Return Number

1шт.

2

8605262

SEAL KIT

Lift Cylinder Service

1шт.

3

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

4

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Pin Dust Seal

2шт.

5

446455A1

GLAND

Packing

1шт.

6

336042A1

BUSHING

Bearing

1шт.

7

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

8

87318069

PISTON ROD

76,2 mm Dia

1шт.

9

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl Washer

1шт.

10

446480A1

PISTON

120.7 mm Dia Cyl.

1шт.
