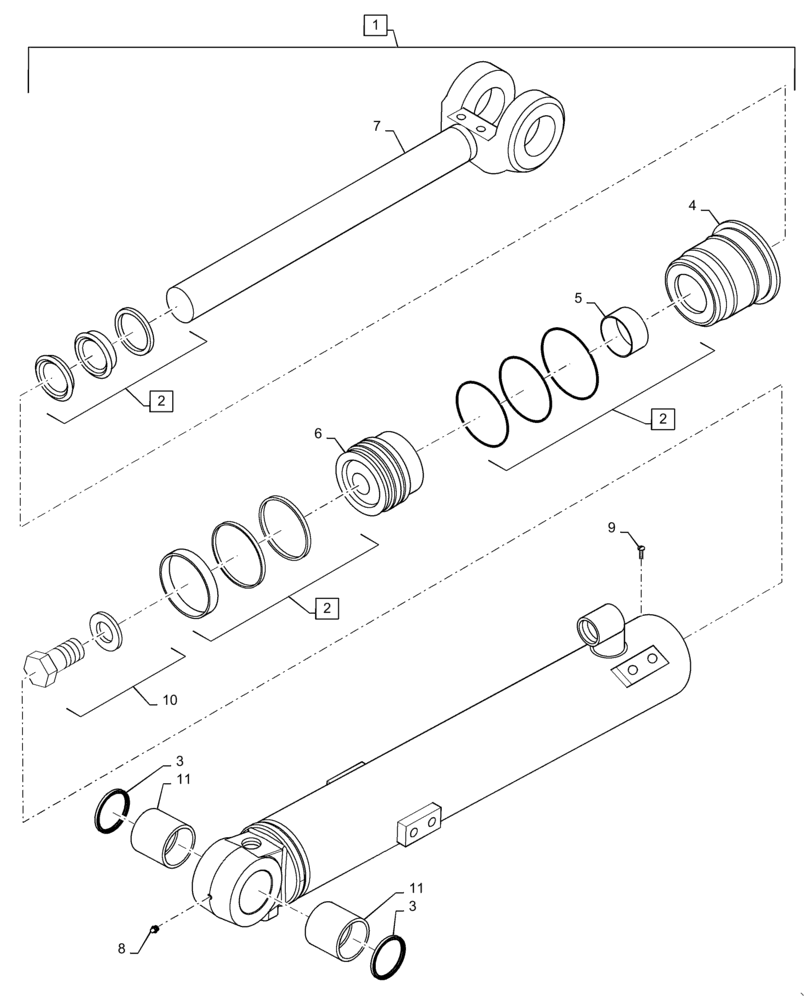

Запчасти Case 721F (35.701.CB[03]) - TILT CYLINDER ASSY, XT (35) - HYDRAULIC SYSTEMS

1

87324809

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke

XT Loader, 1114mm ID x 856.5mm Stroke; Incl 2 - 11

1шт.

1

87324809R

REMAN-HYD CYLINDER

1шт.

1

87324809C

CORE-HYD CYLINDER

Return Number

1шт.

2

87440117

SEAL KIT

XT Bucket Cylinder

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Dust Pin Seal

3шт.

4

87437496

GLAND

Cylinder

1шт.

5

336039A1

BUSHING

Bearing

1шт.

6

G110252

PISTON

Internal

1шт.

7

87324796

PISTON ROD

57.2mm dia

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

10

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

Incl Washer

1шт.

11

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

2шт.
