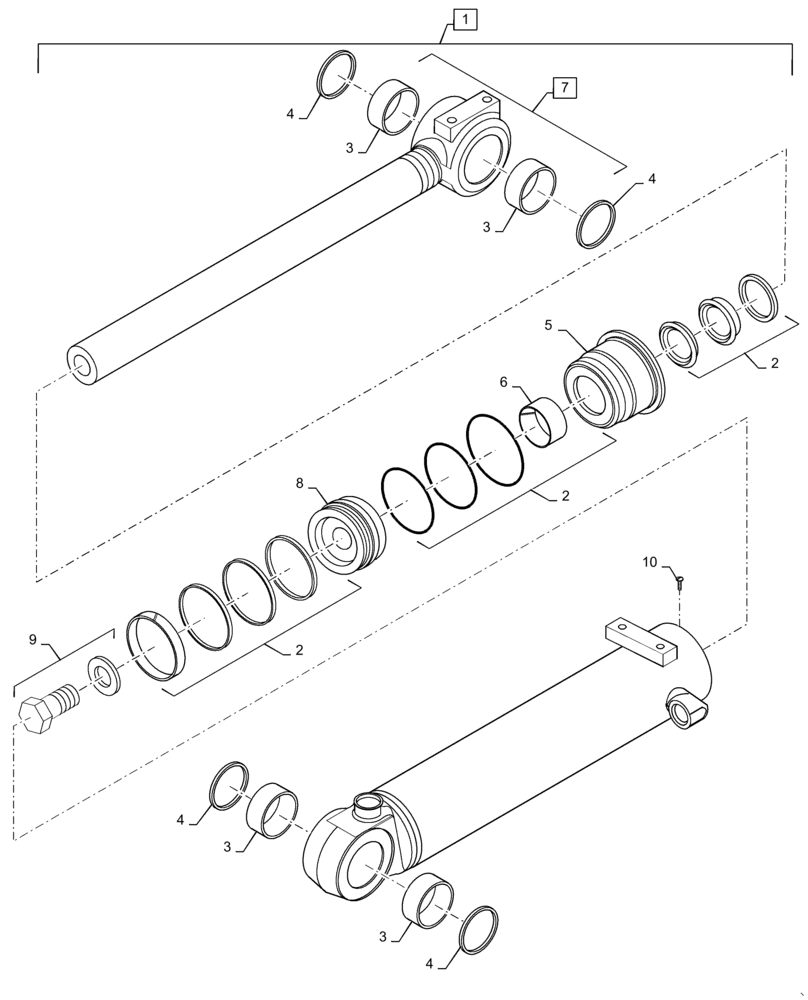

Запчасти Case 721F (35.701.CB[02]) - TILT CYLINDER ASSEMBLY, XR (35) - HYDRAULIC SYSTEMS

1

87691132

CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

HYDRAULIC, 146 ID x 629 mm strk; XR Loader Bucket Tilt, Incl 2 - 10

1шт.

1

87691131R

REMAN-HYD CYLINDER

1шт.

1

87691131C

CORE-HYD CYLINDER

Return Number

1шт.

2

87495411

SEAL KIT

XR Bucket Cylinder

1шт.

3

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

4шт.

4

365523A1

WIPER SEAL

Pin Dust Wiper

4шт.

5

446336A1

GLAND

Packing

1шт.

6

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

7

87691129

ROD

76.2 Dia; Incl 3

1шт.

8

87432306

PISTON ROD/GLAND

146.0 Dia Cylinder; 76.2 Dia Rod

1шт.

9

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl Washer

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
