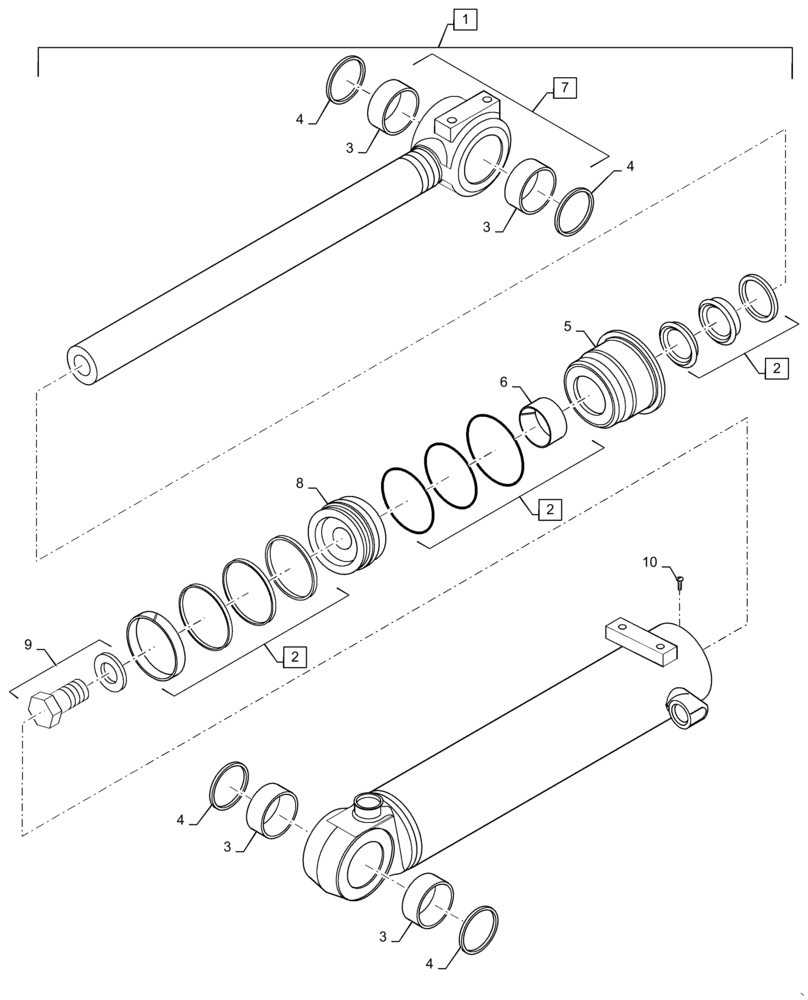

Запчасти Case 721F (35.701.CB[01]) - TILT CYLINDER ASSEMBLY, Z BAR (35) - HYDRAULIC SYSTEMS

1

87318786

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Z-Bar Loader, Bucket; Incl 2 - 10

1шт.

1

87318786R

REMAN-HYD CYLINDER

Z-Bar Loader, Bucket; Incl 2 - 10

1шт.

1

87318786C

CORE-HYD CYLINDER

Return Number

1шт.

2

87442965

SEAL KIT

Seal Repair

1шт.

3

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

4шт.

4

365523A1

WIPER SEAL

Pin Dust Seal

4шт.

5

446336A1

GLAND

Cylinder

1шт.

6

336042A1

BUSHING

Bearing

1шт.

7

87432290

PISTON ROD,76.18mm OD x 977.5mm L

76,2 mm Dia

1шт.

8

87432306

PISTON ROD/GLAND

Piston

1шт.

9

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl Washer

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
