Запчасти Case 721F (35.701.BR) - HYDRAULICS, RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

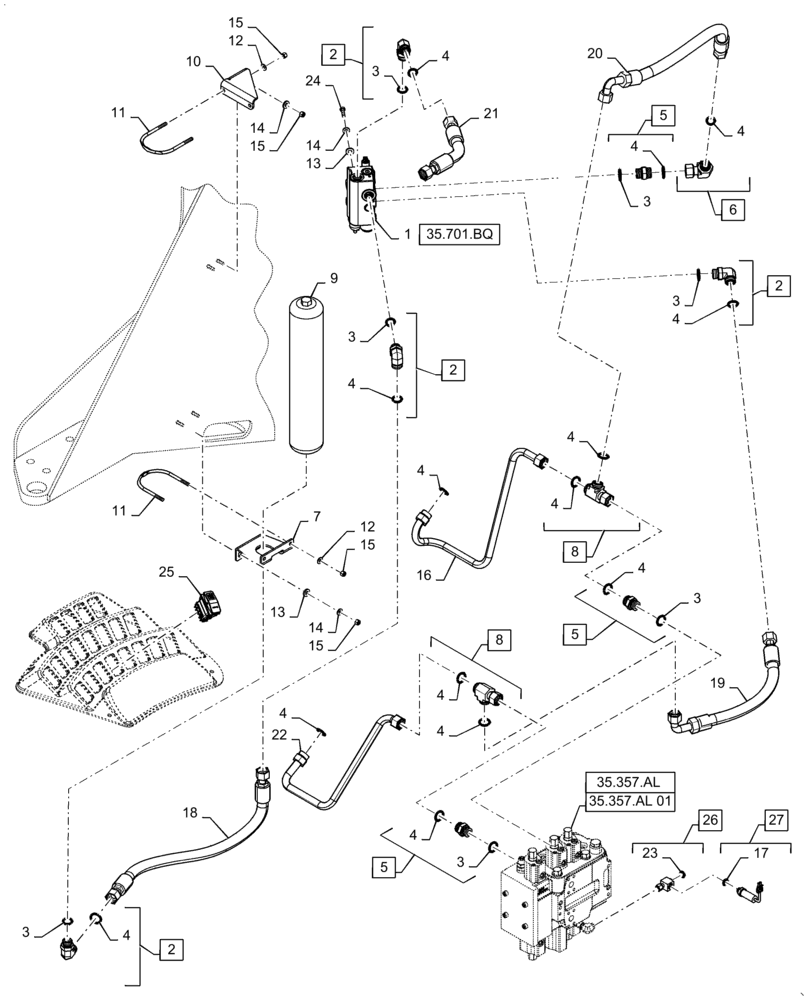

Схема запчастей Case 721F - (35.701.BR) - HYDRAULICS, RIDE CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
21
4
18
11
4
4
5
2
4
14
4
3
3
35.701.bq
8
13
17
16
3
20
3
4
35.357.al
3
2
4
14
3
4
4
4
6
11
4
24
2
15
5
14
10
1
4
25
13
4
7
9
2
19
12
15
26
15
35.357.al 01
27
12
3
22
4
8
5
15
23

Артикул

Название

Примечание

Количество

1

84494281

HYDRAULIC VALVE

Ride Control, RSM2-16

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 3, 4

4шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

7шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

16шт.

5

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 3, 4

3шт.

6

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 4

1шт.

7

87393646

BRACKET

Accumulator, Gray

1шт.

8

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 4

2шт.

9

87393434

ACCUMULATOR,3.8L

Ride Control, Black

1шт.

10

87403347

BRACKET

Accumulator, Gray

1шт.

11

87492028

U-BOLT

Metric, M10 x 1.5 Thread

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15012

WASHER,M12 x 28 x 2.5

8шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

16

87442545

HYD TUBE,25 mm DIA

Lift Rod RH, Z-Bar & XR

1шт.

16

87442547

HYD TUBE,25 mm DIA

Lift Rod RH, XT

1шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

87442515

FLEXIBLE HOSE

Ride Control Accumulator, 903mm ( 35 1/2 in)

1шт.

19

87442516

FLEXIBLE HOSE

Ride Control, Base, 618mm ( 24 5/16 in )

1шт.

20

87305431

FLEXIBLE HOSE

Ride Control, Rod, 791mm ( 31 1/8 in )

1шт.

21

87442518

FLEXIBLE HOSE

Ride Control,Tank, 330mm ( 13 in ), Serial Range: -NFF235000

1шт.

21

47821846

HOSE

Ride Control,Tank, 330mm ( 13 in ), Serial Range: NFF235001-NGF236010

1шт.

21

47960645

HOSE

, Start Serial: NGF236011

1шт.

22

87307826

HYD TUBE

Lift Base RH, Z-Bar & XR

1шт.

22

87307827

HYD TUBE

Lift Base RH, XT

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

25

87350055

SWITCH

Ride Control

1шт.

26

87445673

FITTING

Pressure Switch, Incl 23

1шт.

27

446183A1

PRESSURE SWITCH

Switch Rollback, Incl 17

1шт.

Выбрано товаров: 31
