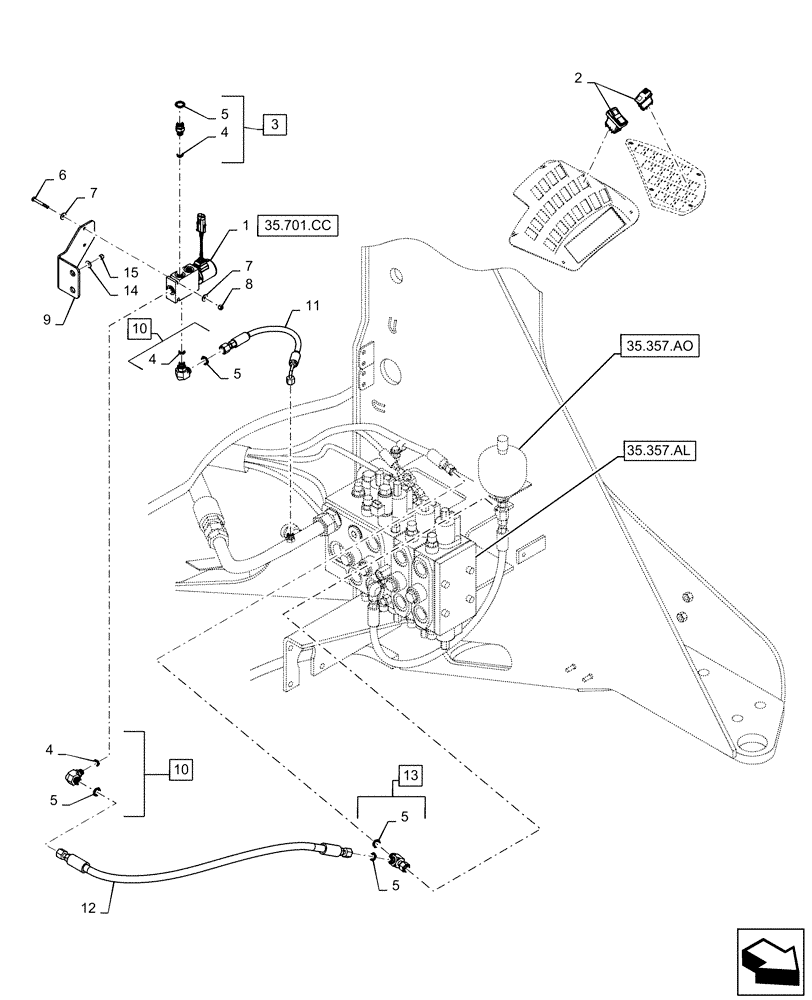

Запчасти Case 721F (35.701.AD) - COUPLER VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84139102

SOLENOID VALVE

Coupler

1шт.

2

364444A2

SWITCH

Pin Engage

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 5

2шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

442303A1

BRACKET

Coupler Solenoid

1шт.

10

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 5

2шт.

11

8500757

FLEXIBLE HOSE

Coupler Return, 400mm Lg

1шт.

12

8500756

FLEXIBLE HOSE

Coupler Pressure, 825mm Lg

1шт.

13

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 5

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
