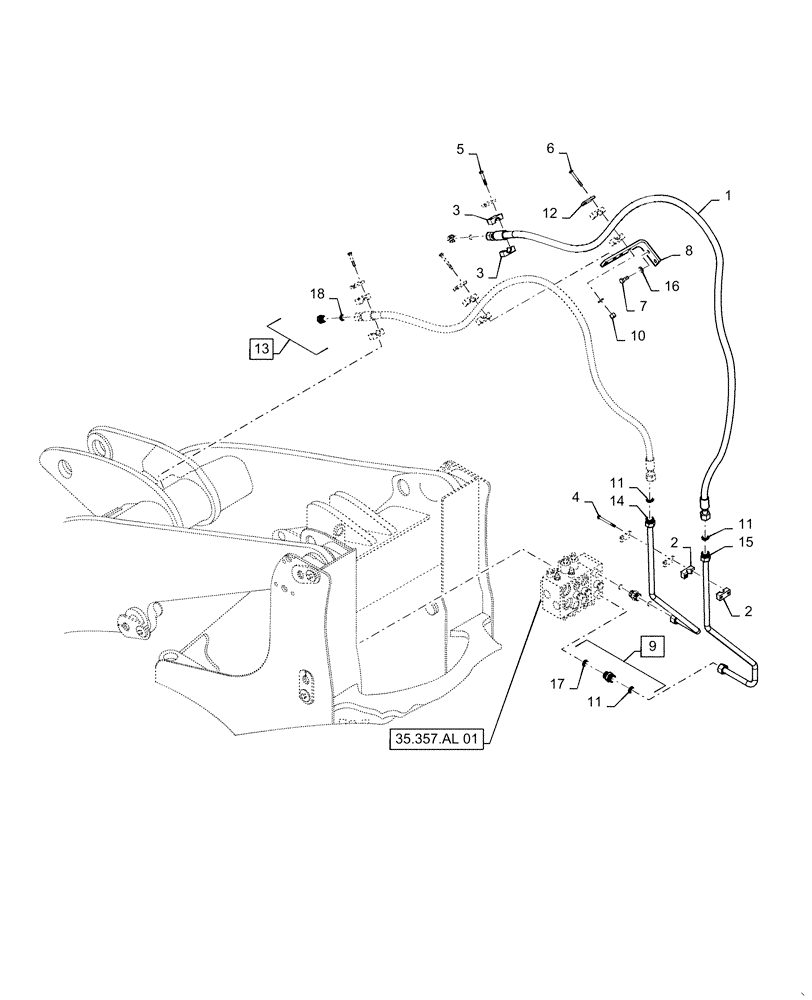

Запчасти Case 721F (35.701.AD[03]) - THIRD SPOOL AUXILIARY LINE INSTALLATION, Z BAR & XR (35) - HYDRAULIC SYSTEMS

1

8500733

FLEXIBLE HOSE,19.05mm ID x 2032mm L

Third Spool, Z-Bar, 2032mm Lg

2шт.

1

87492036

HOSE ASSY.

Third Spool, XR, 2382mm Lg

2шт.

2

367489A1

BLOCK

Tube Mounting

2шт.

3

372453A1

BLOCK

Tube Mounting

4шт.

4

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

5

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

6

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

8

373040A2

BRACKET

Hose Clamp, CE Gray

1шт.

9

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 11, 17

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

Hex, Self-locking, VM10 , 8, A3C, DIN 980

4шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

.062x.938IN Class 6

4шт.

12

367658A1

PLATE

Clamp Cover Plated

6шт.

13

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl 18

2шт.

14

8602070

HYD TUBE

LH Accessory Plated

1шт.

15

8602072

HYD TUBE

RH Accessory Plated

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
