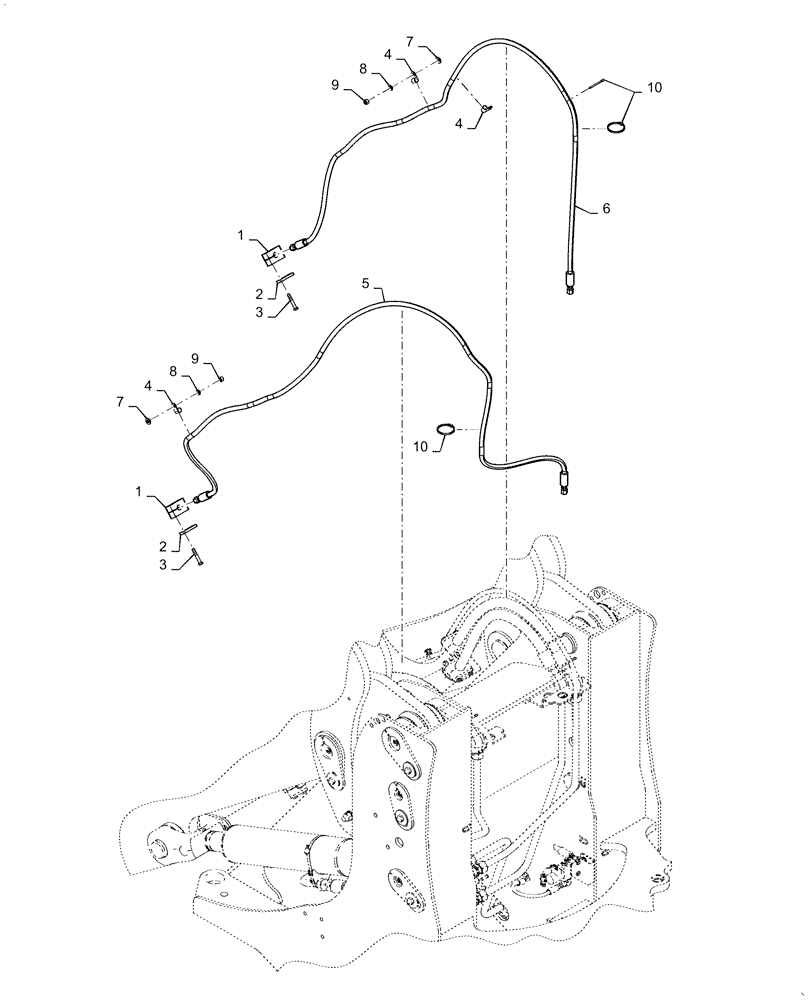

Запчасти Case 721F (35.701.AD[02]) - COUPLER LINE INSTALLATION, XT (35) - HYDRAULIC SYSTEMS

1

76082618

BLOCK

Tube Mounting

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

86508619

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

4

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

5

87437170

FLEXIBLE HOSE

XT Coupler; Left; 3545mm ( 139-1/2 in )

1шт.

6

87437075

FLEXIBLE HOSE

XT Coupler; Right; 3270mm ( 128-3/4 in )

1шт.

7

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

8шт.
