Запчасти Case 721F (35.526.AE) - HEAT LOAD VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

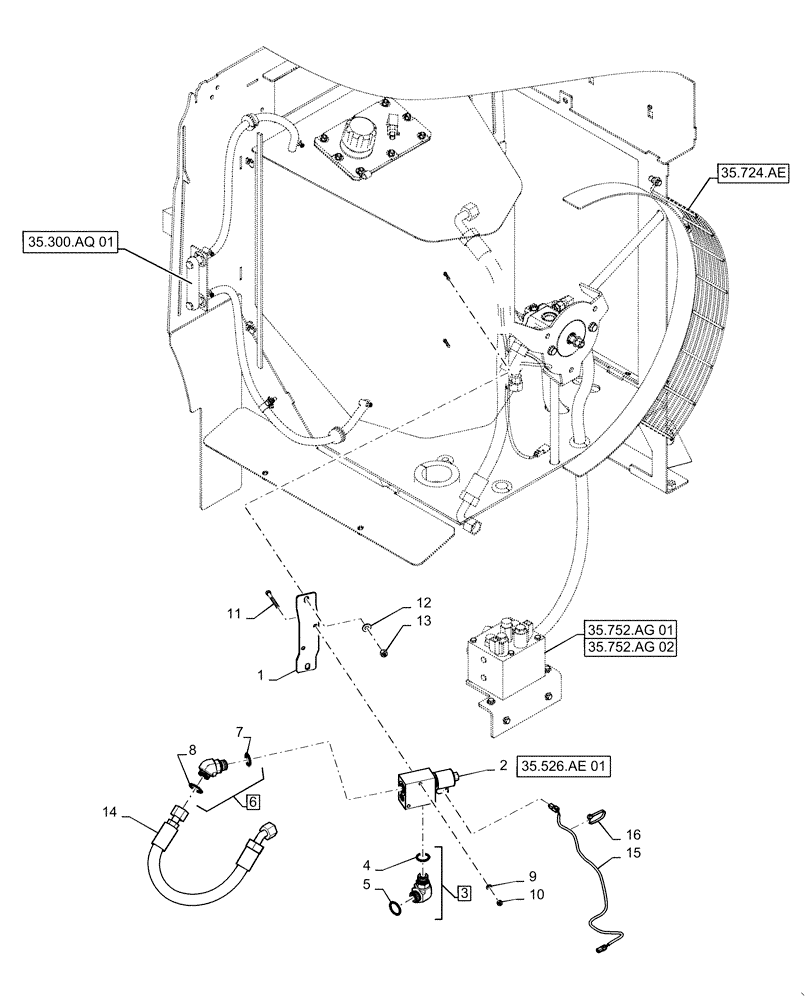

Схема запчастей Case 721F - (35.526.AE) - HEAT LOAD VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
35.752.ag 01
7
4
5
11
3
12
14
8
16
1
2
10
6
13
15
9
35.526.ae 01
35.724.ae
35.300.aq 01
35.752.ag 02

Артикул

Название

Примечание

Количество

1

84528111

BRACKET, SUPPORTING

Support

1шт.

2

84483998

CONTROL VALVE

Combination

1шт.

3

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4,5

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 6,7

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

84528108

HOSE ASSY.

Valve to Fan Motor

1шт.

15

84553088

JUMPER

Cab Heat

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

Выбрано товаров: 16
