(35.359.AJ[04]) - VALVE ASSY, BUCKET/BOOM, 3 SPOOL Z-BAR, XR & XT

Запчасти Case 721F (35.359.AJ[04]) - VALVE ASSY, BUCKET/BOOM, 3 SPOOL Z-BAR, XR & XT (35) - HYDRAULIC SYSTEMS

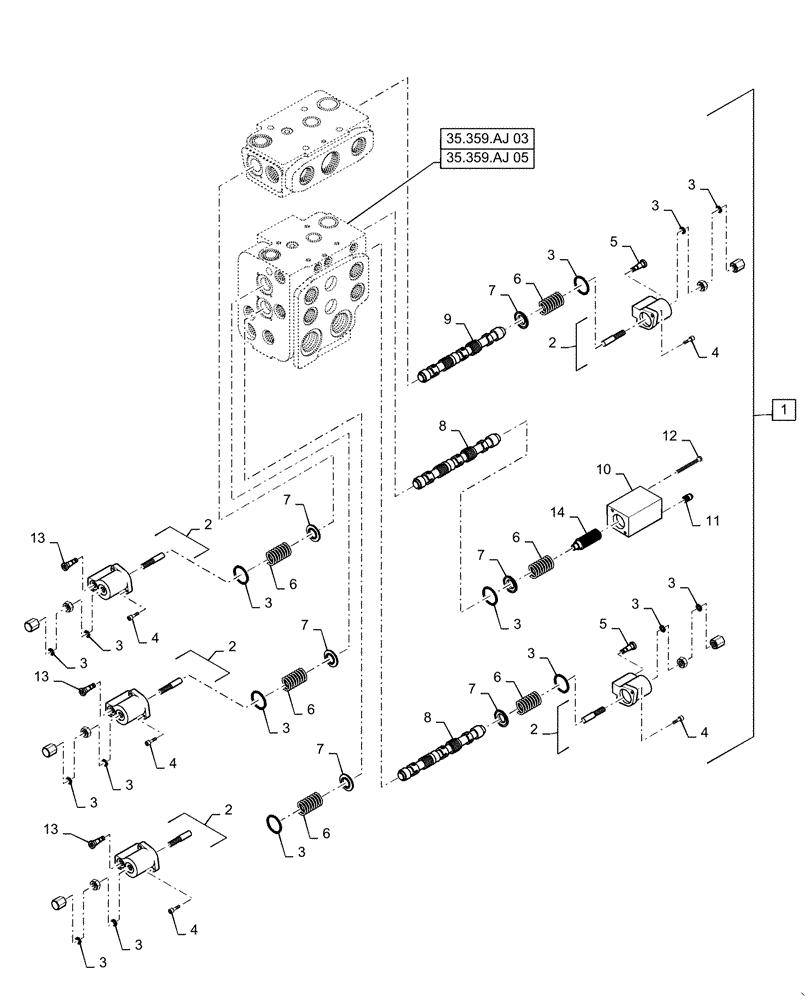

Схема запчастей Case 721F - (35.359.AJ[04]) - VALVE ASSY, BUCKET/BOOM, 3 SPOOL Z-BAR, XR & XT (35) - HYDRAULIC SYSTEMS
35.359.aj 05
3
3
2
7
3
7
7
13
5
6
4
3
5
6
13
3
4
3
3
2
7
11
3
10
3
6
3
3
6
4
3
3
2
3
4
6
7
2
13
1
6
2
12
4
9
3
14
8
8
7
3
35.359.aj 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47740553

VALVE

Hydraulic Valve, Three Spool, Z-Bar & XR, Incl 1 - 14

1шт.

1

47740561

VALVE

Hydraulic Valve, Three Spool, XT, Incl 1 - 14

1шт.

2

87613464

COVER

Spool Endcap

5шт.

3

8602927

SEAL KIT

For Main Housing

1шт.

4

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

10шт.

4

87615735

SCREW

M6 x 65 - 8.8

10шт.

5

8602924

CARTRIDGE

M12 x 1.5mm

3шт.

6

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

6шт.

7

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in 1

6шт.

8

NSS

NOT SOLD SEPARAT

Bucket and Optional Spool, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Boom, Upper Spool, Incl in 1

1шт.

10

87311762

COVER

4 - Position Spool Endcap

1шт.

11

8604578

CHECK VALVE

Throttle

1шт.

12

8602892

HEX SOC SCREW,M6 x 105mm

2шт.

13

87311766

PLUG

Hydraulic

2шт.

14

NSS

NOT SOLD SEPARAT

Spring, Compression for Float, Incl in 1

1шт.
