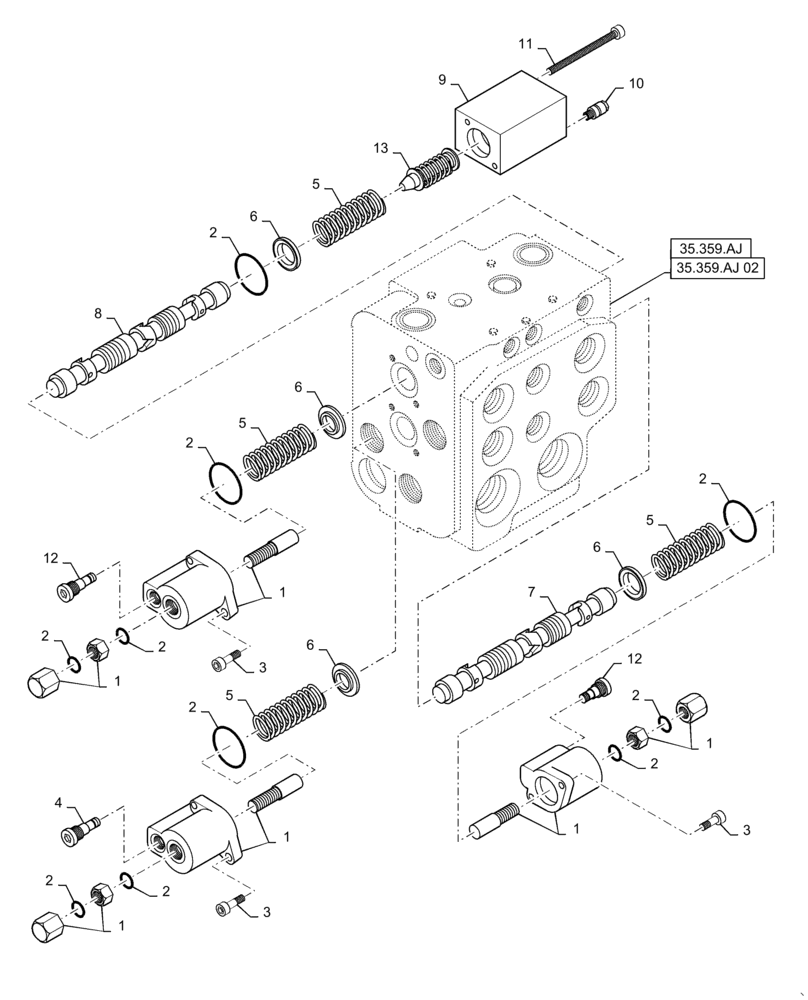

Запчасти Case 721F (35.359.AJ[01]) - VALVE ASSEMBLY, BUCKET/BOOM 2 SPOOL, Z-BAR, XR AND XT (35) - HYDRAULIC SYSTEMS

1

87613464

COVER

Spool Endcap

3шт.

2

8602927

SEAL KIT

For Main Housing

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

3

87615735

SCREW

M6 x 65 - 8.8

6шт.

4

8602924

CARTRIDGE

M12 x 1,5

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in Fig. 35.359.AJ Ref 1

4шт.

5

NSS

NOT SOLD SEPARAT

Spring, Incl in Fig. 35.359.AJ(02) Ref 1

4шт.

6

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in Fig. 35.359.AJ Ref 1

4шт.

6

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in Fig. 35.359.AJ(02) Ref 1

4шт.

7

NSS

NOT SOLD SEPARAT

Bucket, Lower Spool, Incl in Fig. 35.359.AJ Ref 1

1шт.

7

NSS

NOT SOLD SEPARAT

Bucket, Lower Spool, Incl in Fig. 35.359.AJ(02) Ref 1

1шт.

8

NSS

NOT SOLD SEPARAT

Boom, Upper Spool, Incl in Fig. 35.359.AJ Ref 1

1шт.

8

NSS

NOT SOLD SEPARAT

Boom, Upper Spool, Incl in Fig. 35.359.AJ(02) Ref 1

1шт.

9

87311762

COVER

4 - Position Spool Endcap

1шт.

10

8604578

CHECK VALVE

Throttle

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

2шт.

12

87311766

PLUG

Hydraulic

2шт.

13

NSS

NOT SOLD SEPARAT

Spring, Compression for Float, Incl in Fig. 35.359.AJ Ref 1

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Compression for Float, Incl in Fig. 35.359.AJ(02) Ref 1

1шт.
