(35.359.AF) - 2 LEVER CONTROL INSTALLATION

Запчасти Case 721F (35.359.AF) - 2 LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

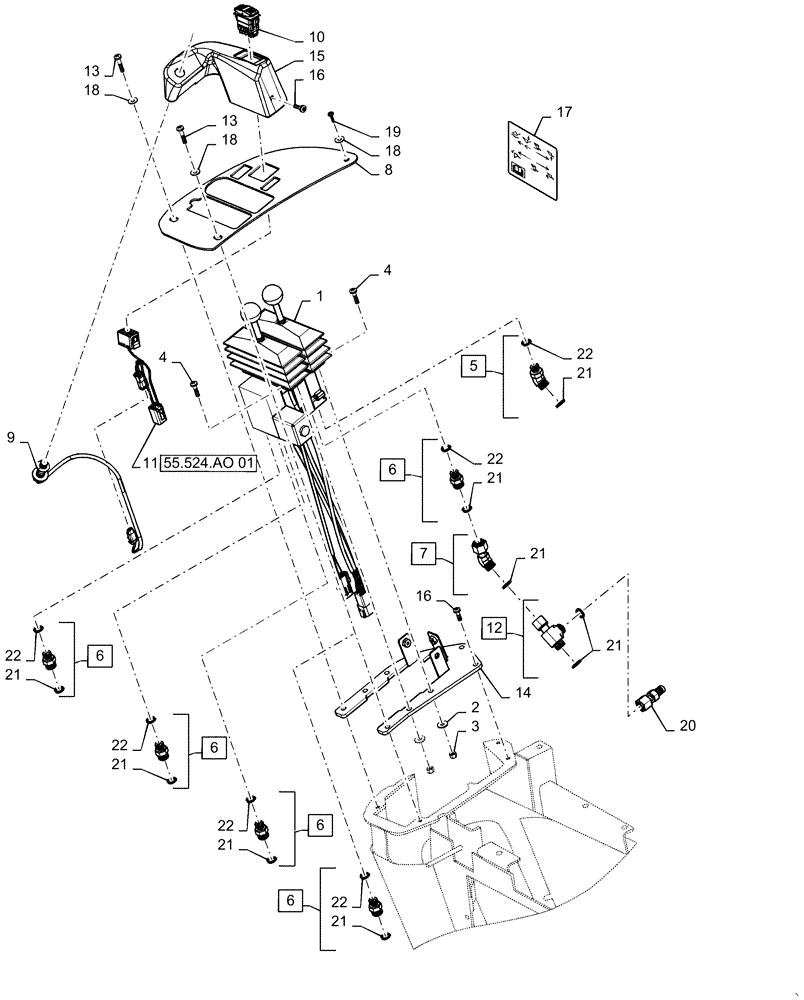

Схема запчастей Case 721F - (35.359.AF) - 2 LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS
55.524.ao 01
15
22
5
21
22
6
4
21
14
21
8
13
9
18
10
13
21
21
2
4
21
12
21
16
17
7
22
6
22
21
18
6
1
22
22
20
19
16
11
18
6
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

407868A2

VALVE, CONTROL

Dual Lever With Two Spool Valve

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21, 22

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21, 22

5шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 21

1шт.

8

84314705

BEZEL

2 Lever

1шт.

9

402390A1

SWITCH

Push Button; Downshift

1шт.

10

400833A2

SWITCH

Rocker; Forward/Neutral/Reverse

1шт.

11

87324389

WIRE HARNESS

Forward/Neutral/Reverse Switch

1шт.

12

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 21

1шт.

13

84263396

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

2шт.

14

87534053

BRACKET

Single Axis Controller

1шт.

15

87523729

COVER

Tower

1шт.

16

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

5шт.

17

87536092

DECAL

2 - Lever Control

1шт.

18

47368445

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

19

1270762C1

SELF-TAP SCREW

Pan Head, 3/4" Lg

1шт.

20

190119A1

COUPLING

Diagnostic

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

22

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

6шт.
