(35.357.AL) - CONTROL VALVE INSTALLATION,TWO SPOOL, Z-BAR/XT LOADER

Запчасти Case 721F (35.357.AL) - CONTROL VALVE INSTALLATION,TWO SPOOL, Z-BAR/XT LOADER (35) - HYDRAULIC SYSTEMS

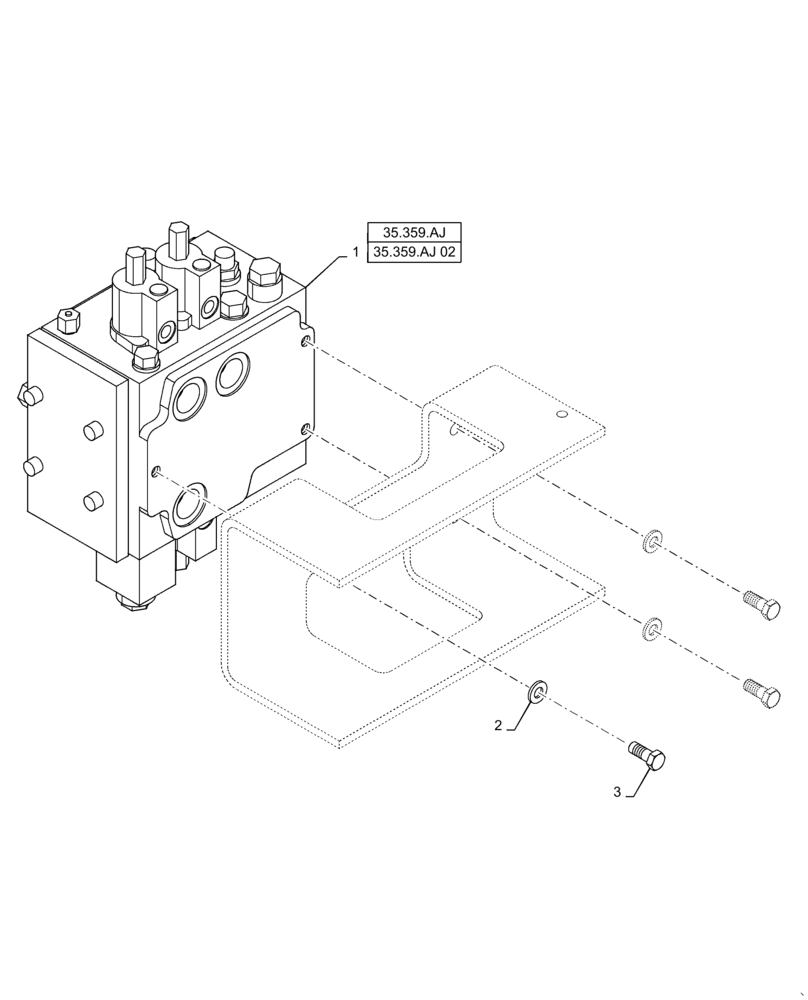

Схема запчастей Case 721F - (35.357.AL) - CONTROL VALVE INSTALLATION,TWO SPOOL, Z-BAR/XT LOADER (35) - HYDRAULIC SYSTEMS
35.359.aj
2
1
3
35.359.aj 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47740547

VALVE

Hydraulic Valve, 2 Function, Z-Bar

1шт.

1

47740559

VALVE

Hydraulic Valve, 2 Function, XT

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.
