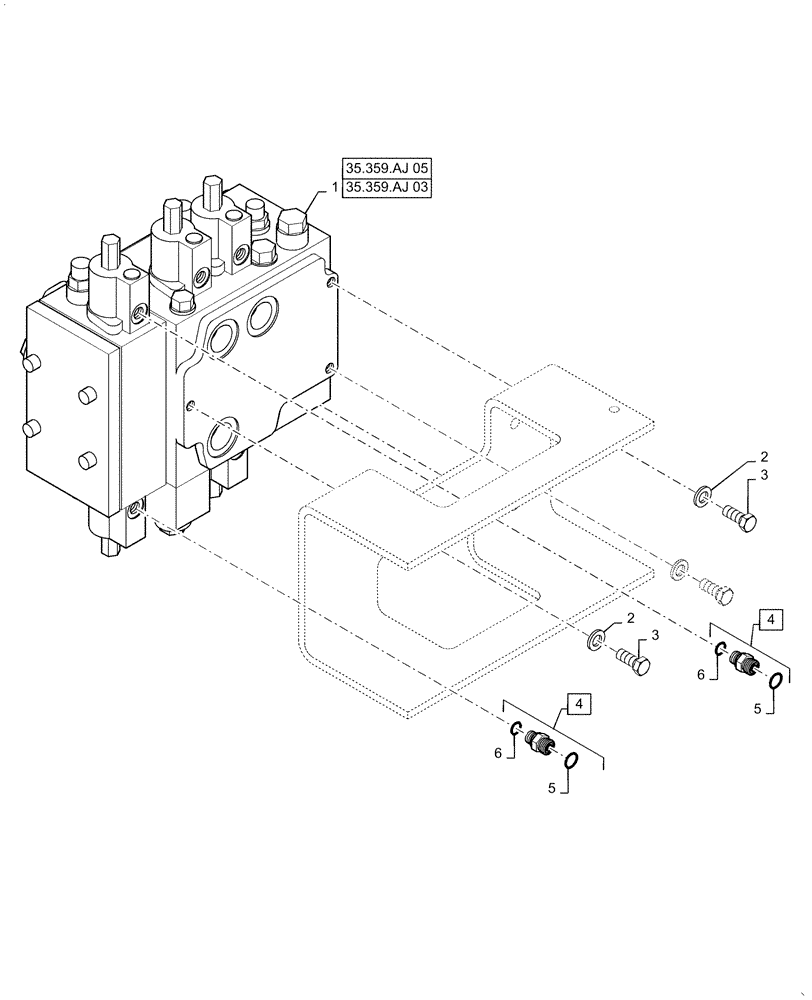

Запчасти Case 721F (35.357.AL[01]) - CONTROL VALVE INSTALLATION THREE SPOOL, Z-BAR/XT LOADER (35) - HYDRAULIC SYSTEMS

1

47740553

VALVE

Hydraulic Valve, 3 Function, Z-Bar

1шт.

1

47740561

VALVE

Hydraulic Valve, 3 Function, XT

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

4

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 5, 6

2шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

6

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
