Запчасти Case 721F (35.300.BC) - COOLANT RECOVERY SYSTEM (35) - HYDRAULIC SYSTEMS

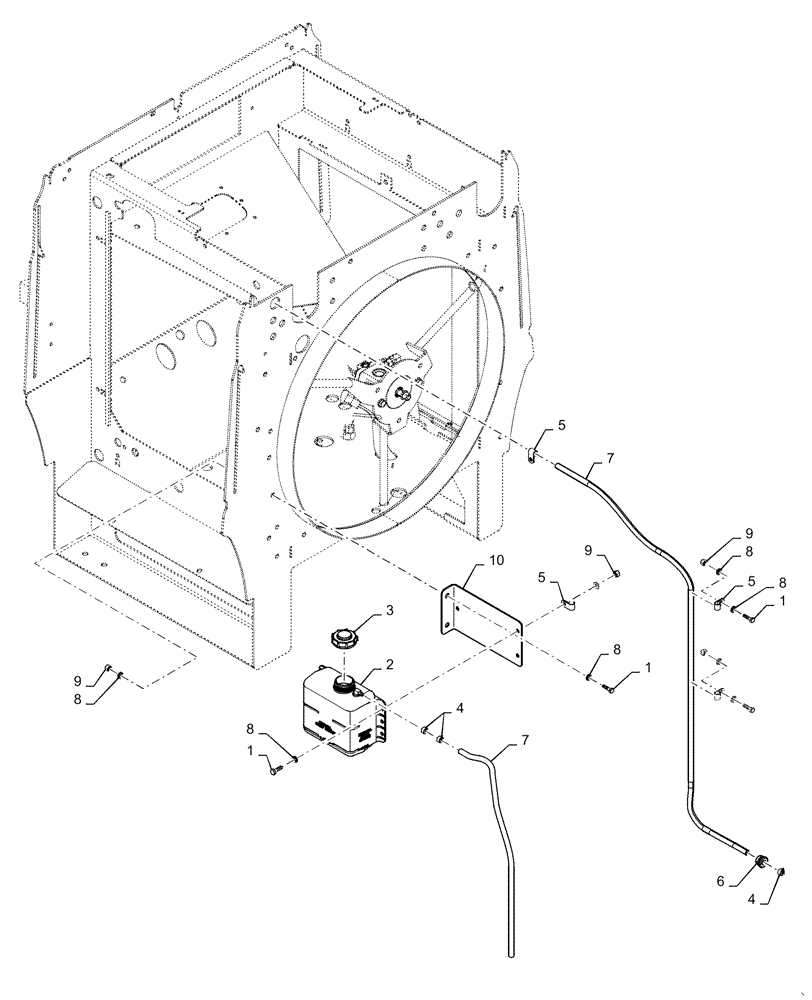

Схема запчастей Case 721F - (35.300.BC) - COOLANT RECOVERY SYSTEM (35) - HYDRAULIC SYSTEMS
6
8
5
1
8
3
4
1
5
4
8
9
2
7
7
8
8
9
9
1
5
10

Артикул

Название

Примечание

Количество

1

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

2

A184395

RESERVOIR

Coolant Recovery Bottle

1шт.

3

1547924C1

CAP

Coolant Recovery Bottle

1шт.

4

A171099

HOSE CLAMP,13.2mm - 15.4mm

For Coolant Recovery & Drain Hose

3шт.

5

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

6

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

1шт.

7

31-2855

HOSE

5/16" ID, Cut to 695 mm for Drain, Cut to 1676.4 mm for Coolant Recovery

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

87585139

BASE PLATE

Coolant Bottle

1шт.

Выбрано товаров: 10
