(35.300.AD[02]) - HYDRAULIC RESERVOIR OIL FILTER ASSEMBLY

Запчасти Case 721F (35.300.AD[02]) - HYDRAULIC RESERVOIR OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS

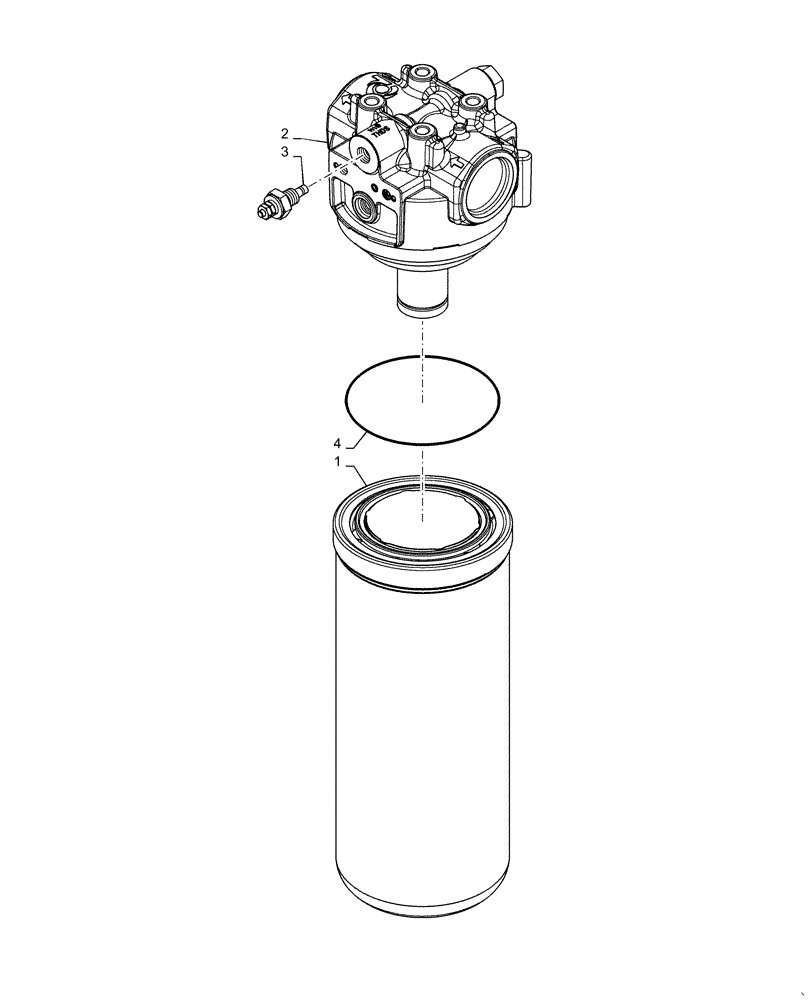

Схема запчастей Case 721F - (35.300.AD[02]) - HYDRAULIC RESERVOIR OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84196445

HYDRAULIC OIL FILTER

Spin On, 11.63"

1шт.

2

47562740

FILTER HEAD

Assy

1шт.

3

8604802

PRESSURE SWITCH

Indicator Assy

1шт.

4

84362145

RING

Gasket

1шт.
