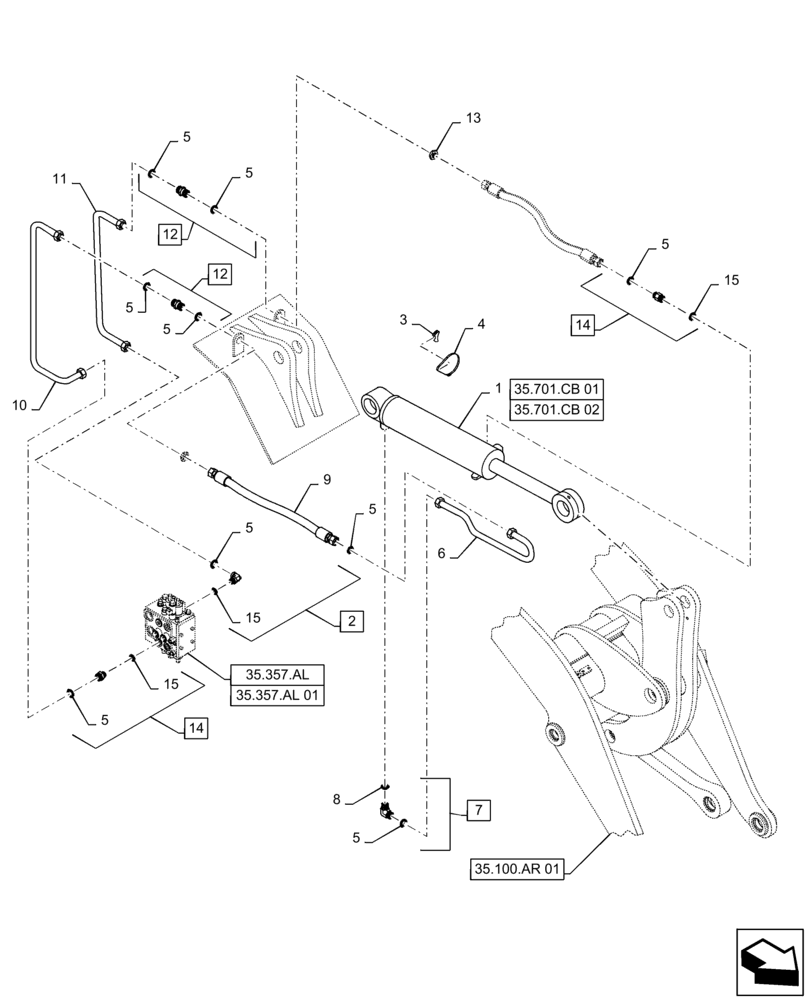

Запчасти Case 721F (35.100.AR[05]) - TILT CYLINDER INSTALLATION, Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

87318786

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt, Z-Bar

1шт.

1

87318786R

REMAN-HYD CYLINDER

Tilt, Z-Bar

1шт.

1

87318786C

CORE-HYD CYLINDER

Return Number

1шт.

1

87691132

CYLINDER,Double Acting, 76.2mm Rod, 629.4mm Stroke

Tilt, XR

1шт.

2

700-335

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 5, 15

1шт.

3

391133A1

CLAMP

Saddle, Hose

1шт.

4

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

1шт.

5

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

9шт.

6

8602125

HYD TUBE

Tilt Cylinder

1шт.

7

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 5, 8

1шт.

8

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

9

8602615

FLEXIBLE HOSE,31.75mm ID x 988mm L, SAE 100R11

Tilt

2шт.

10

8602611

HYD TUBE

Rollback, Serial Range: -NFF235000

1шт.

10

47850193

TUBE

Rollback, Start Serial: NFF235001

1шт.

11

8602613

HYD TUBE

Dump, Serial Range: -NFF235000

1шт.

11

47850191

TUBE

Dump, Start Serial: NFF235001

1шт.

12

701-174

UNION,1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

Incl 5

2шт.

13

701-922

BHD LOCK NUT,1-11/16" - 12

2шт.

14

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 5, 15

2шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.
