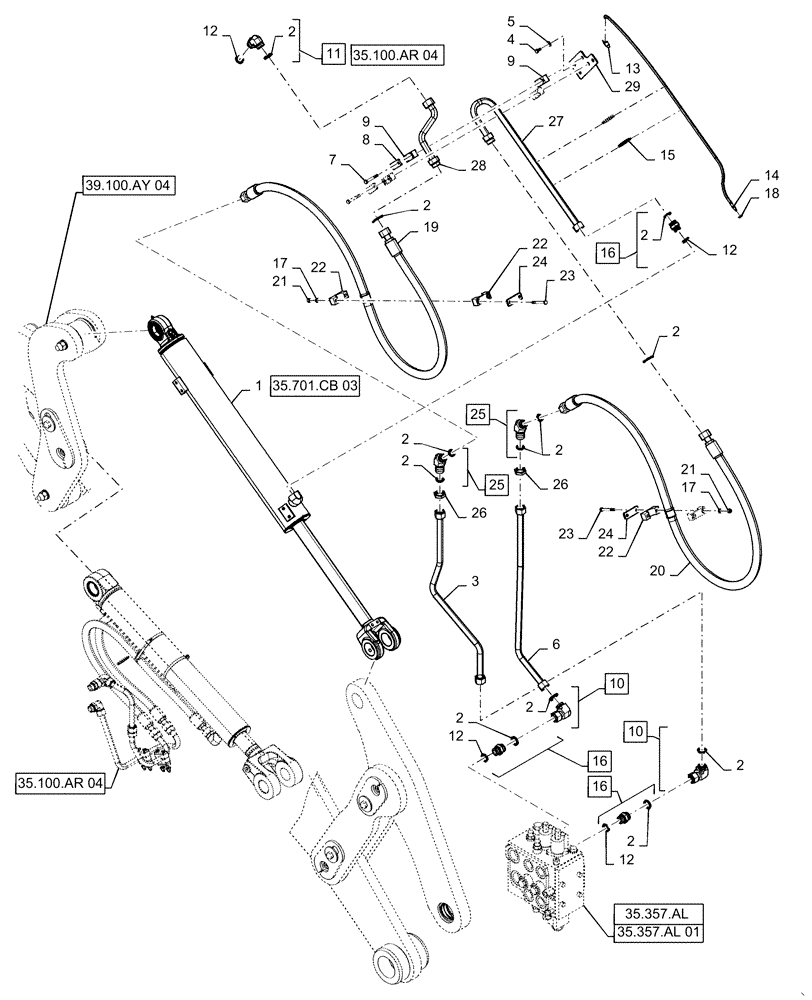

Запчасти Case 721F (35.100.AR[03]) - TILT CYLINDER INSTALLATION - XT LEFT SIDE (35) - HYDRAULIC SYSTEMS

1

87324809

BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke

Tilt, XT

1шт.

1

87324809R

REMAN-HYD CYLINDER

1шт.

1

87324809C

CORE-HYD CYLINDER

Return Number

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

10шт.

3

87439873

HYD TUBE,25 mm OD x 775, 275 mm L

Tilt Base Left

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

87439871

HYD TUBE,25 mm OD x 888, 164 mm L

Tilt Rod Left

1шт.

7

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

8

367658A1

PLATE

Clamp Cover

2шт.

9

367489A1

BLOCK

Tube Mounting

2шт.

10

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 2, 12

1шт.

12

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

6шт.

13

328082A1

ELBOW

90° Long Street

1шт.

14

87444057

FLEXIBLE HOSE

Grease, 1185mm Lg

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

16

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 2, 12

5шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

18

F53473

LOCK NUT,1/8-27 NPSM

Hex

1шт.

19

87436780

FLEXIBLE HOSE,25.4mm ID x 2293mm L, SAE 100R12

Tilt Base, 2293mm Lg

1шт.

20

87436779

FLEXIBLE HOSE,25.4mm ID x 2333mm L, SAE 100R12

Tilt Rod, 2333mm Lg

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

22

87444561

BLOCK

Tube Mounting

2шт.

23

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

24

8500858

PLATE

Clamp Cover

2шт.

25

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 2

2шт.

26

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

27

87444576

HYD TUBE,25 mm OD x 724, 117 mm L

Tilt Rod Left

1шт.

28

87444580

HYD TUBE,25 mm OD x 266, 123 mm L

Tilt Base Left

1шт.

29

87444686

BRACKET

Tilt Tubes Left

1шт.
