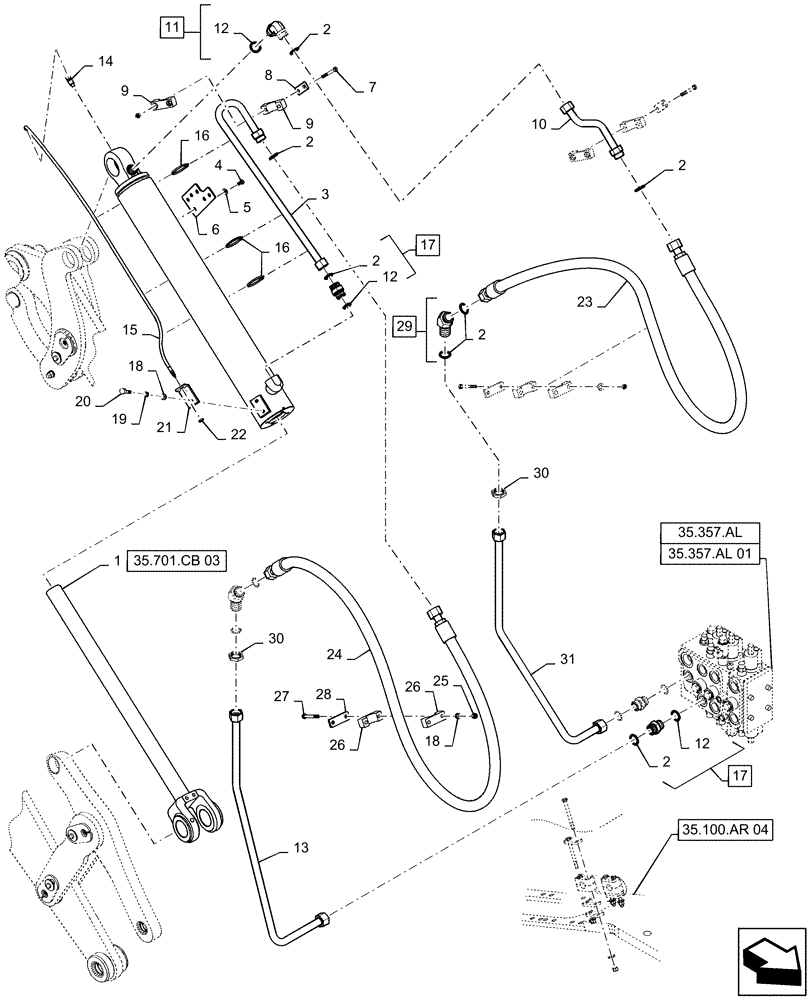

Запчасти Case 721F (35.100.AR[02]) - TILT CYLINDER INSTALLATION - XT RIGHT SIDE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case 721F - (35.100.AR[02]) - TILT CYLINDER INSTALLATION - XT RIGHT SIDE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5325947.png)
№
Артикул
Название
Примечание
Количество
1
87324809
BUCKET CYLINDER,Double Acting, 57.2mm Rod, 856.5mm Stroke
Tilt, XT
1шт.
1
87324809R
REMAN-HYD CYLINDER
1шт.
1
87324809C
CORE-HYD CYLINDER
Return Number
1шт.
2
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
10шт.
3
87444574
HYD TUBE,25 mm OD x 724, 117 mm L
Tilt Rod Right
1шт.
4
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
2шт.
5
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
6
87444684
BRACKET
Tilt Tube Right
1шт.
7
827-10070
BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9
4шт.
8
367658A1
PLATE
Clamp Cover
2шт.
9
367489A1
BLOCK
Tube Mounting
2шт.
10
87444578
HYD TUBE,25 mm OD x 266, 124 mm L
Tilt Base Right
1шт.
11
700-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Incl 2, 12
1шт.
13
87439867
HYD TUBE,25 mm OD x 909, 234 mm L
Tilt Rod Right
1шт.
14
328082A1
ELBOW
90° Long Street
1шт.
15
87444057
FLEXIBLE HOSE
Grease, 1185mm Lg
1шт.
16
L11541
CABLE TIE,203.2mm L, Nylon
3шт.
17
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Incl 2, 12
3шт.
18
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
19
892-11010
LOCK WASHER,M10
2шт.
21
87441374
BRACKET
Grease Hose
1шт.
22
F53473
LOCK NUT,1/8-27 NPSM
Hex
1шт.
23
87436780
FLEXIBLE HOSE,25.4mm ID x 2293mm L, SAE 100R12
Tilt Base
1шт.
24
87436779
FLEXIBLE HOSE,25.4mm ID x 2333mm L, SAE 100R12
Tilt Rod
1шт.
25
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
26
87444561
BLOCK
Tube Mounting
2шт.
27
827-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9
4шт.
28
8500858
PLATE
Clamp Cover
2шт.
29
701-366
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
Incl 2
2шт.
30
701-908
BHD LOCK NUT,1-7/16" - 12
2шт.
31
87439869
HYD TUBE,25 mm OD x 817, 275 mm L
Tilt Base Right
1шт.
Выбрано товаров: 33
