(35.100.AR[01]) - LIFT CYLINDER INSTALLATION, Z-BAR, XR

Запчасти Case 721F (35.100.AR[01]) - LIFT CYLINDER INSTALLATION, Z-BAR, XR (35) - HYDRAULIC SYSTEMS

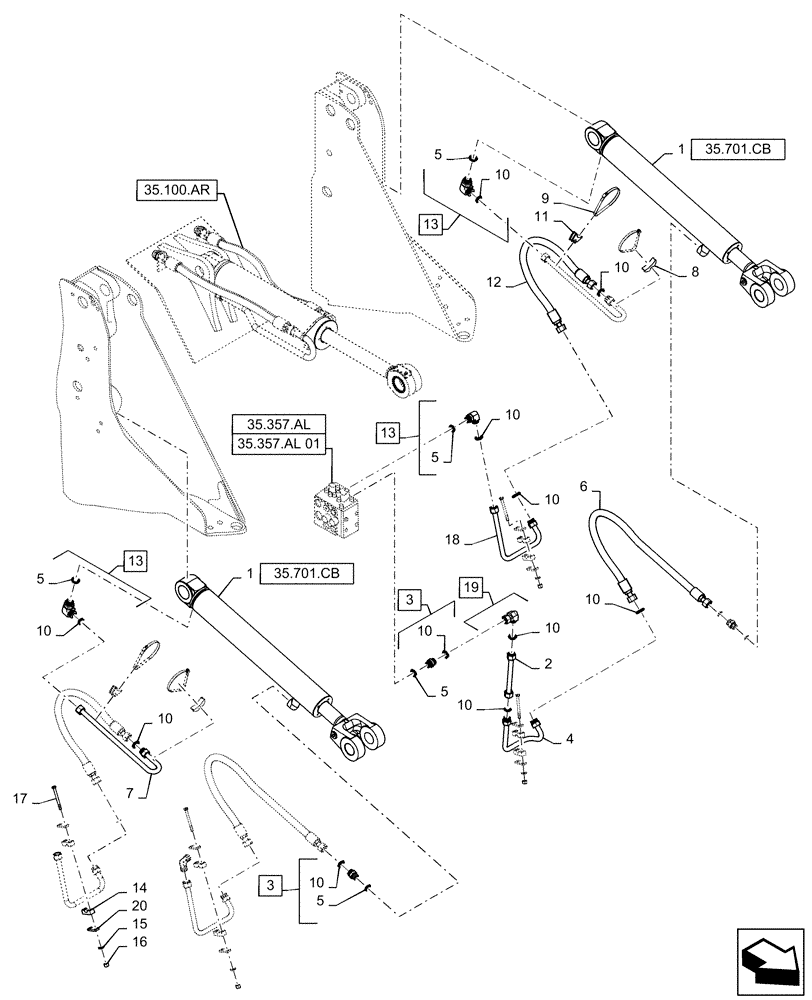

Схема запчастей Case 721F - (35.100.AR[01]) - LIFT CYLINDER INSTALLATION, Z-BAR, XR (35) - HYDRAULIC SYSTEMS
35.701.cb
4
11
35.100.ar
10
10
9
17
10
19
5
3
6
3
12
10
5
13
13
1
10
13
10
10
15
20
10
2
14
5
5
18
16
10
10
10
8
5
1
7
35.357.al
35.357.al 01
35.701.cb
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87319194

LIFT CYLINDER,Double Acting, 76.2mm Rod, 828.1mm Stroke

Z-BAR & XR

2шт.

1

87319194R

REMAN-HYD CYLINDER

Z-BAR & XR

2шт.

1

87319194C

CORE-HYD CYLINDER

Return Number, Z-BAR & XR

2шт.

2

8501057

HYD TUBE

LHS Lower Straight

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 5, 10

3шт.

4

8501055

HYD TUBE

LHS Lower Formed

1шт.

5

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

6шт.

6

87659631

HYDRAULIC HOSE,25.4mm ID x 1525mm L, SAE 100R12

Lift Rod

2шт.

7

8500547

HYD TUBE

Lift Cylinder

2шт.

8

391133A1

CLAMP

Hose

2шт.

9

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

12шт.

11

8500550

BLOCK

Clamp

2шт.

12

87659635

HYDRAULIC HOSE,25.4mm ID x 1103mm L, SAE 100R12

Lift Base

2шт.

13

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 5, 10

3шт.

14

367489A1

BLOCK

Tube Mounting

4шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

17

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

8шт.

18

8500519

HYD TUBE

LHS Raise

1шт.

19

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 10

1шт.

20

367658A1

PLATE

Clamp Cover

4шт.
