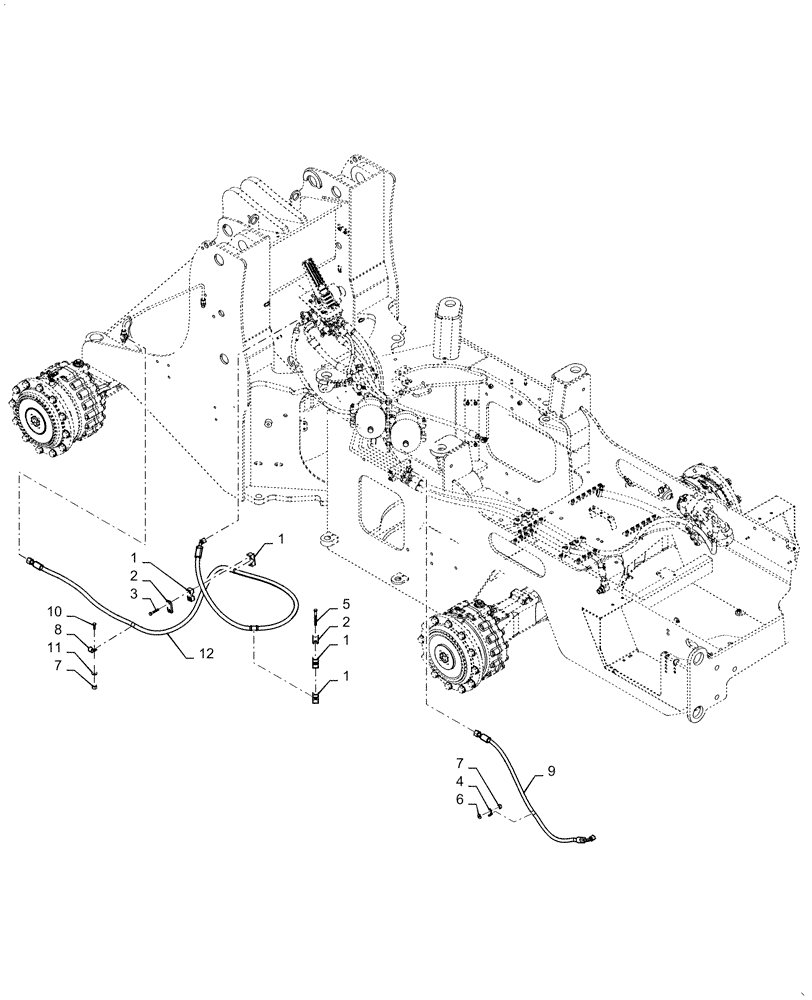

Запчасти Case 721F (33.202.AP[04]) - BRAKE LINE INSTALLATION STANDARD AXLE (33) - BRAKES & CONTROLS

1

367489A1

BLOCK

Hose Clamp

2шт.

2

367658A1

PLATE

Hose Clamp

2шт.

3

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

4

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

5

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

9

84240230

HOSE ASSY.

Rear Axle, 1087mm Lg

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

84402125

HOSE ASSY.

Break Pedal Valve Assy to Axle, 3400mm Lg

1шт.
