(33.202.AP[03]) - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES

Запчасти Case 721F (33.202.AP[03]) - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES (33) - BRAKES & CONTROLS

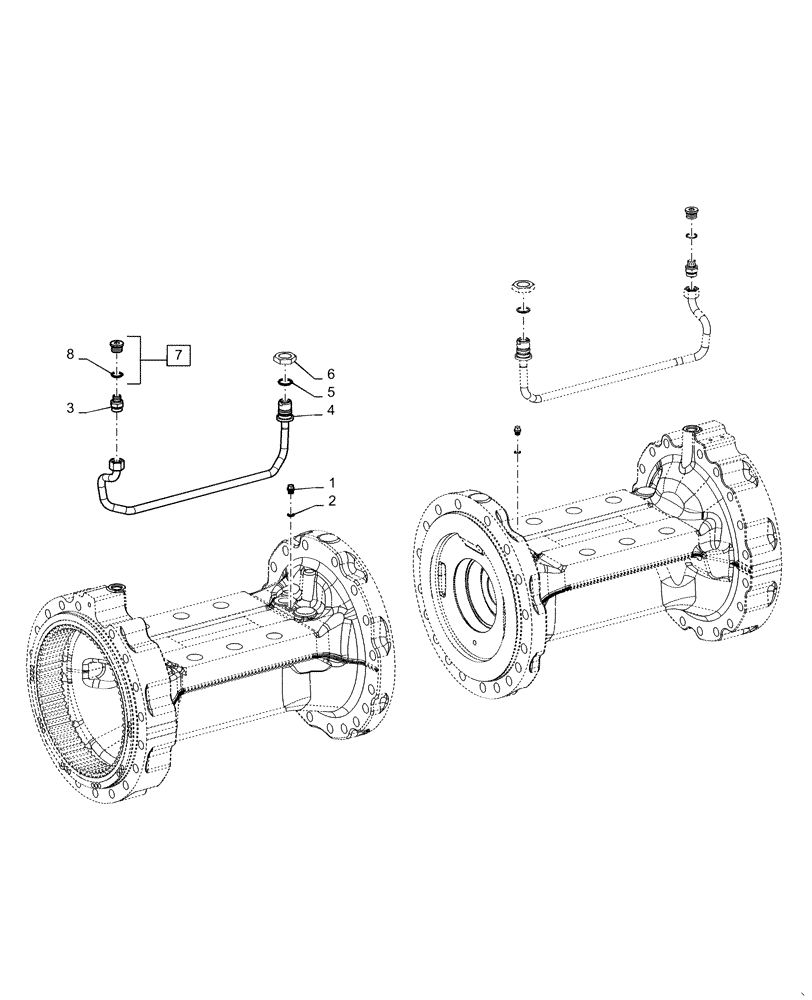

Схема запчастей Case 721F - (33.202.AP[03]) - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES (33) - BRAKES & CONTROLS
4
5
7
6
8
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100113A1

PLUG

Screw, M10 x 1

1шт.

2

A52231

SEALING RING

10.2mm ID x 13.4mm OD x 1mm Thk

1шт.

3

87743748

SLEEVE

Screw-In

1шт.

4

84354744

TUBE

Front Standard, Front and Rear Heavy Duty

1шт.

4

84146573

HYD TUBE

Rear Standard

1шт.

5

8603725

O-RING

1шт.

6

8603619

TUBE NUT

Axle Cooler

1шт.

7

84329402

PLUG

Screw, Incl 8

1шт.

8

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.
