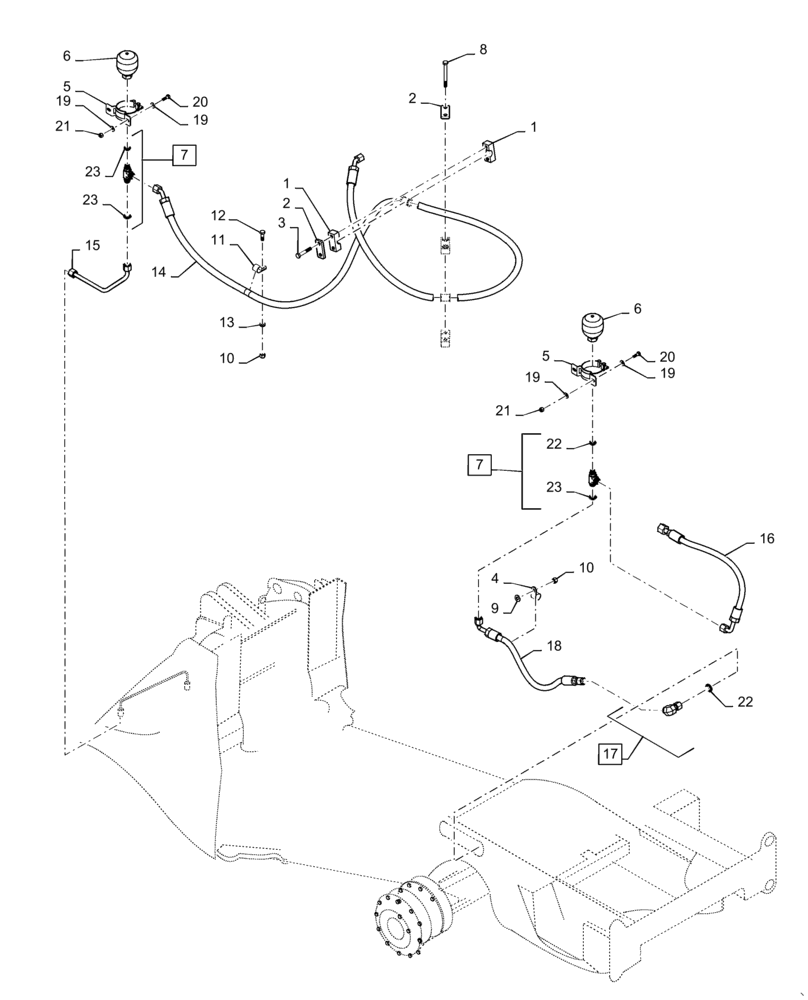

Запчасти Case 721F (33.202.AP[02]) - BRAKE LINE INSTALLATION, HEAVY DUTY (33) - BRAKES & CONTROLS

1

367489A1

BLOCK

Tube Mounting

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

3

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

4

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

5

84272713

CLAMP,73mm - 79mm

Accumulator

2шт.

6

84393492

ACCUMULATOR

Brake Damping

2шт.

7

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 22 - 23

2шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

84420976

HOSE ASSY.

Brake Supply, Front, 3251mm Lg

1шт.

15

84280370

HYD TUBE

Brake Supply, Front

1шт.

16

84272711

HOSE ASSY.

Rear Brake Supply, Accumulator

1шт.

17

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 22

1шт.

18

84272714

HOSE ASSY.

Rear Brake Supply, Axle, 668mm Lg

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
