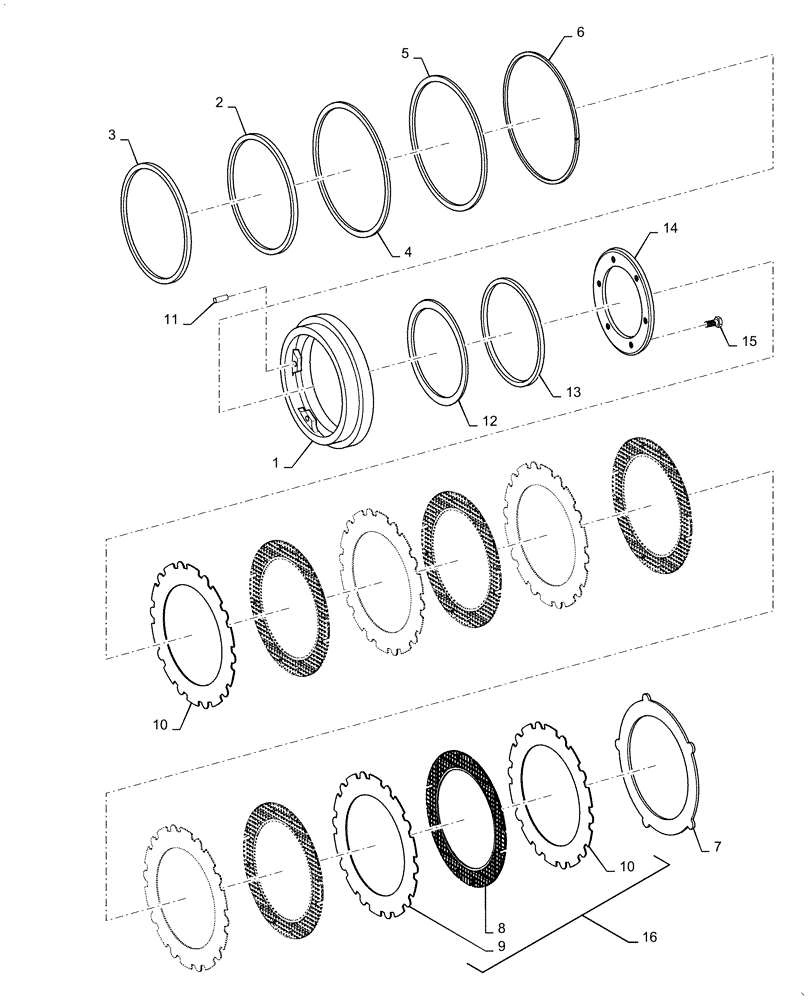

Запчасти Case 721F (33.202.AK[01]) - REAR AXLE BRAKE ASSEMBLY, STANDARD (33) - BRAKES & CONTROLS

1

84352093

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston U-Ring

1шт.

3

8603577

RING

Piston Seal Support

1шт.

4

8605315

SEAL

Brake Piston U-Ring

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

7

84150637

SHIM

End

1шт.

8

87341835

BRAKE DISC

Ring, Incl 16

5шт.

9

8603582

BRAKE PLATE

Ring, Incl 16

4шт.

10

87441328

PLATE,2mm Thk

Brake Separtor 2mm

2шт.

11

87743218

PIN

Slotted

6шт.

12

87743219

WASHER

Break Group

1шт.

13

87743220

WASHER

Spring

1шт.

14

87498342

COVER

Retaining

1шт.

15

87743747

SCREW,Hex

6шт.

16

87365253

REPAIR KIT

Brake Service Kit, One Kit Per Axle

1шт.
