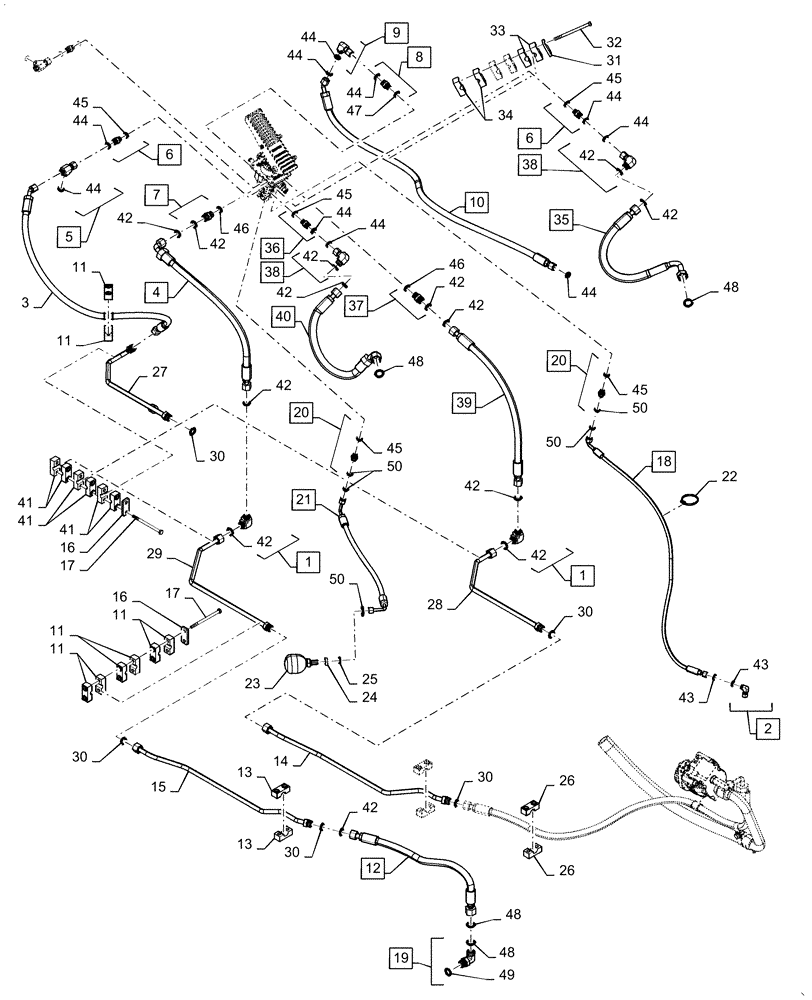

Запчасти Case 721F (33.202.AA[02]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

Incl 42

2шт.

2

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 43

1шт.

3

87325999

HOSE ASSY.

Rear Axle Brake, 1206mm Lg

1шт.

4

84300561

FLEXIBLE HOSE

Brake Valve Discharge, 777m Lg, Incl 42

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 44

2шт.

6

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 44, 45

4шт.

7

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 42, 46

2шт.

8

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 44, 47

2шт.

9

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 44

1шт.

10

84337115

FLEXIBLE HOSE

Brake Valve to Tank, 1615mm Lg, Incl 44

1шт.

11

367489A1

BLOCK

Tube Mounting

3шт.

12

84421910

HOSE ASSY.,15.88mm ID x 667mm L, SAE 100R17

Fan Control, Incl 42, 48

1шт.

13

8500210

CLAMP

Block, Tube Mounting

8шт.

14

84382798

HYD TUBE

Pump Press Mid

1шт.

15

84382796

HYD TUBE

Fan Control Mid

1шт.

16

367658A1

PLATE

Clamp Cover

4шт.

17

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

6шт.

18

84373987

HOSE ASSY.

Parking Brake, 1210mm Lg, Incl 43, 50

1шт.

19

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 48, 49

1шт.

20

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 45, 50

2шт.

21

84362170

HOSE ASSY.

Parking Brake Acc., 612mm Lg, Incl 50

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

23

8500209

ACCUMULATOR

Parking Brake

1шт.

24

701-909

NUT,11/16" - 16

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

367489A1

BLOCK

Tube Mounting

3шт.

27

84243185

TUBE

Rear Axle Brake

1шт.

28

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

29

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

31

367658A1

PLATE

Clamp Cover

4шт.

32

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

6шт.

33

8501052

SPECIAL CLAMP

Block, Tube Mounting

1шт.

34

379374A1

BLOCK

Block, Tube Mounting

2шт.

35

84308886

FLEXIBLE HOSE

Rear Brake Accumulator, 589mm Lg, Incl 42, 48

1шт.

36

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 44, 45

4шт.

37

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 42, 46

2шт.

38

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Incl 42, 44

2шт.

39

84300560

FLEXIBLE HOSE

Brake Valve Supply, 738mm Lg, Incl 42

1шт.

40

84308885

FLEXIBLE HOSE

Front Brake Accumulator, 577mm Lg, Incl 42, 48

1шт.

41

8500210

CLAMP

Block, Tube Mounting

8шт.

42

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

44

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

46

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

47

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

49

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

50

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
