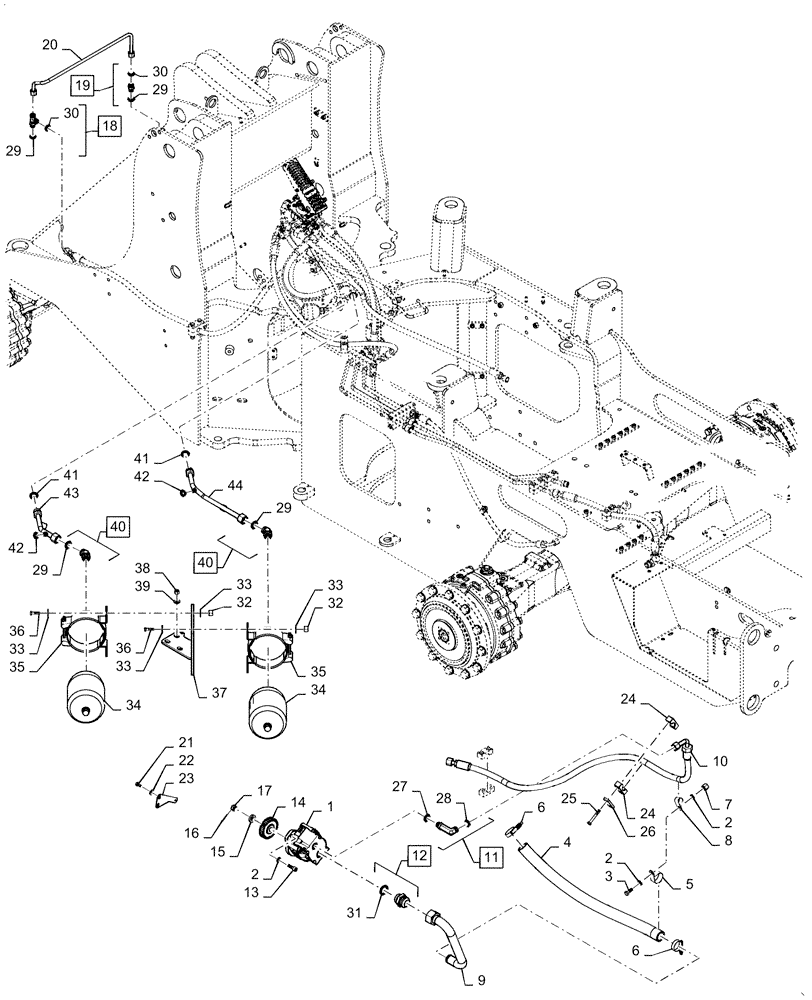

Запчасти Case 721F (33.202.AA[01]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

47526503

HYDRAULIC PUMP

25cc Gear

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

4

84399712

FLEXIBLE HOSE

Brake Pump Suction, 800mm Lg

1шт.

5

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

6

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

8

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

9

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

1шт.

10

47490120

HOSE

Brake Pump Pressure, 1537mm Lg

1шт.

11

84129708

ELBOW

Incl 27, 28

1шт.

12

87555427

HYD CONNECTOR

Incl 31

1шт.

13

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

2шт.

14

87389871

GEAR

Accessory Drive

1шт.

15

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting, 20mm ID x 36mm OD x 7.5mm Thk

1шт.

16

733-3232

COTTER PIN,M3.2 x 32

1шт.

17

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

18

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 29, 30

1шт.

19

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 29, 30

2шт.

20

84304028

HYD TUBE

Front Axle

1шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

23

47542869

PLATE

Harness Routing

1шт.

24

8606002

CLAMP

Block Tube Mouting

1шт.

25

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

26

367658A1

PLATE

Clamp Cover

4шт.

27

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

34

87728740

ACCUMULATOR

Service Brake

2шт.

35

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

36

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

37

84295689

BRACKET, SUPPORTING

Brake Accumulator

1шт.

38

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

39

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

40

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Incl 29

2шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

42

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

43

84576181

RIGID TUBE

Front Brake Accumulator

1шт.

44

84576177

RIGID TUBE

Rear Brake Accumulator

1шт.
